Motorola

XPR 8000 Series

Combining the best of two-way radio with digital technology, MOTOTRBO delivers increased capacity, exceptional voice quality, enhanced battery performance and integrated data communication via the industry's largest third-party application developer program. MOTOTRBO is built to the globally recognized ETSI DMR Tier 2 standard.

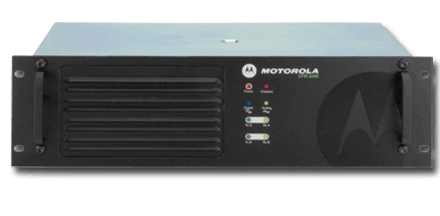

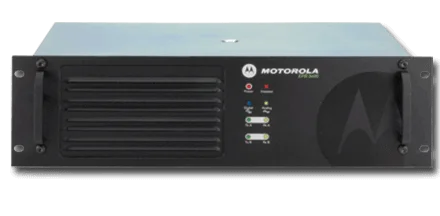

Maximize the performance of your MOTOTRBO system with the XPR 8380 repeater. Available in 800 / 900 MHz frequency bands, the XPR 8380 utilizes dynamic mixed mode capability to ease migration by automatically switching between analog and digital modes. XPR 8380 supports two simultaneous voice or data paths in digital mode, doubling capacity without additional equipment.


Request a Quote

Performance

Frequency Range:
806-825 MHz
896-902 MHz

Power Output:
10 - 35 W

Channel spacing:
12.5 kHz / 25 kHz for 800 MHz
12.5 kHz only for 900 MHz

Physical

Dimensions
5.22 in H x 19 in W x 11.67 in L (132.6 mm H x 482.6 mm W x 296.5 mm L)

Weight
31 lbs (14 kg)

User Enviroment

Operating temperature
-30°C to +60°C

IP Standards

TDMA Digital Audio Capability
Time-division multiple-access (TDMA) provides twice the calling capacity for the price of one license.

Easy Installation
Wall- or rack-mountable, with sturdy handles.

Transmit Interrupt
Enables intervention during conversations to deliver critical communication exactly when and where it's needed.

Dynamic Mixed Mode
Allows for automatic switching between analog and digital mode for mixed radio fleets.

Reliable Performance
Runs 100% continuous full-duty cycle at 40 W.

Connect Plus
With extended coverage and expanded voice and data capability, this multi-site digital trunking solution enables you to accommodate the high volume, wide area communication that's required to keep your mobile work teams connected.

Capacity Plus
A scalable, single-site trunking solution that enables over a thousand radio users to share business-critical voice and data communication on the same system.

IP Site Connect
Extend communication between multiple locations, create continuous wide-area coverage, or enhance single-site coverage.
