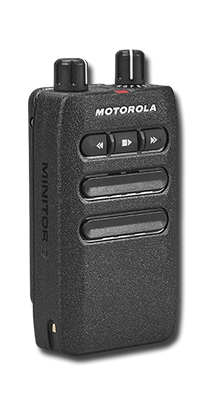

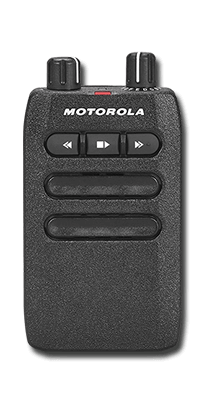

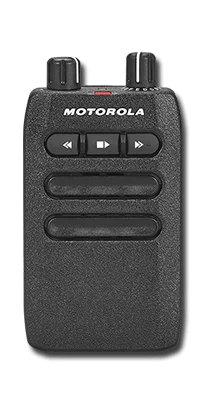

Motorola MINITOR VI
MINITOR VI
Replay. Respond.
Compact, lightweight and durable, the MINITOR 7 is built for the realities of first responders. Whether in an urban incident or wildland fire, rely on the MINITOR’s 50 years of excellence; We understand the challenges you face - you need a device tough enough to withstand hazardous environments, to deliver life-saving information when you need it most.
Performance
Channels:
5
Frequency Band:
VHF, UHF
Frequency Range:
VHF: 143-174 MHz; UHF: 450-486 MHz
Standard battery chemistry type:
Li-Ion
Battery life (between charge cycles):
10 Days (80 hours)
Channel spacing:
25kHz / 12.5kHz
Voice Storage Time
20 Minutes
Physical
Dimensions H x W x D (with standard battery)
4.5 x 2.4 x 1.0 inches
Weight (with standard battery)
6.4 oz
Keypad / Keys
User Enviroment
Operating temperature
-30C/+60C
IP Standards
IP66 & IP67
MIL-STD
MIL-STD 810C, D, E, F, G, H
Two-Tone Pager
Whether in an urban incident or wildland fire, a pager is the reliable solution; you will hear the message loud and clear, and you can replay it at will.
Key features
Simple
Error-proof design keeps you focused on the emergency
Reliable
Ingress protection IP66, IP67 for use in wet and dusty environments
Safe
What's inside
- Up to 20 minutes of storage time
- Integrated button and speaker
- IP66 & 67 for protection against water and dust
- Warning alert for when you need immediate help
- 5-channel scan
- Customizable voice announcements and alert tones
Spec Sheets
Antennas
 | RLN6507 VHF Antenna for Use With Minitor VI Amplified Charger |
 | RLN6508 Minitor VI Charger Antenna |
Carry Accessories
 | RLN8640 Minitor 7 Belt Clip |
| PMLN8591 Minitor 7 Nylon Carry Case |
Batteries
 | PMNN4438 Minitor VI/7 Intrinsically Safe Li-Ion Battery |
Chargers
| RLN8638 Minitor 7 Standard Charger |
 | RLN8639 Minitor 7 Amp Charger |
Motorola MINITOR 7 Models:
A03JAC9KA1AN 5 Channel IS VHF 151-158.995
A04RAC9KA1AN 5 Channel IS UHF 450-486.995
