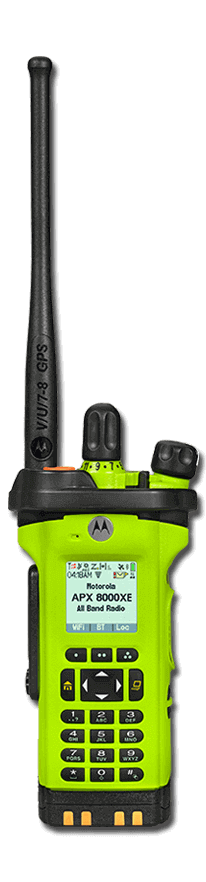

Motorola APX 8000XE
APX 8000XE
Firefighters said they wanted equivalent extreme features as the APX XE Series including a larger display, exaggerated control knobs and the capability to communicate with surrounding municipalities within an all-band radio solution. The APX 8000XE brings together not only these requirements, but also the integration of Wi-Fi for programming flexibility.
The APX 8000XE is redefining mission-critical communications by delivering an ultra-durable radio that combines unlimited interoperability, loud audio and secure Wi-Fi connectivity. With a dedicated channel knob and ability to withstand 500˚F (260˚C) heat exposure, the APX XE500 Remote Speaker Microphone is the perfect companion to the APX 8000XE. When combined, the APX 8000XE All-Band Portable Radio and XE500 Remote Speaker Microphone create the ultimate mission-critical solution designed for safety personnel in extreme environments.
Performance
Frequency Band:
VHF, UHF-1, UHF-2, 700 MHz, 800 MHz
Frequency Range:
700/800 (764-776, 794-806, 806-825, 851-870 MHz)
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)
Power Output:
1-6 W
Number of Channels/Groups/Zones:
1,200 / 3,000 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Channel spacing:
12.5 kHz, 20 kHz, 25 kHz
Physical
Dimensions (without battery)
Length: 6.15" 156.2mm
Width Push-To-Talk button: 2.39" 60.7mm
Depth Push-To-Talk button: 1.40" 35.5mm
Width Top: 3.32" 84.3mm
Depth Top: 2.13" 54.1mm
Depth Bottom of Battery: 1.24" 31.5mm
Weight (without standard battery)
13.9 oz 394.1g
Keypad / Keys
Model 1.5: None
Model 2.5: Backlit keypad, 3 soft keys, 4-way navigation pad, Home and Data buttons
Model 3.5: Backlit keypad, 4x3 keypad, 3 soft keys, 4-way navigation pad, Home and Data buttons
Display
Model 1.5: Full bitmap monochromatic LCD top display, 1 line text x 8 characters, 1 line of icons, No menu support, Multi-color backlight
Model 2.5/3.5: Top display plus: Full bitmap color LCD display, 4 lines of text x 14 characters, 2 lines of icons
1 menu line x 3 menus, White backlight
User Enviroment
Operating temperature
-30ºC / +60ºC
Mil spec
MIL-STD-810 C, D, E, F and G
IP Standards
IP68
All-Band Operation
4 Bands In 1 Radio
7/800 MHz, VHF and UHF Range 1 and Range 2 bands
Modes And Protocols Include:
Analog MDC-1200 and QCII, Digital P25, Conventional or Trunked, Smartnet / SmartZone, clear or secure, repeater or direct
Adaptive Audio Engine
Adaptive Dual-sided Operation
using beam-forming technology so you can talk into either side of the radio.
Adaptive Noise Suppression
adjusts the audio algorithm so you can cancel out the noise as it changes in the environment.
Adaptive Speaker Equalization
adjusts the 3 watt loud speaker settings based on volume selection so the sound is optimized for talker authenticity at lower volumes and speech intelligibility at higher volumes.
Adaptive Gain Control
adjusts microphone gain based on how loud you talk into the radio to ensure a consistent audio level on the receiving end.
Adaptive Windporting
engages a third microphone in order to cancel out wind noise.
Designed For The Mission
Familiar Look And Feel
of the APX XE Series.
Flexible All-band Antenna
that bends easily while you're moving around on the job.
Aggressive T-shape
so the radio is easier to grip even with wet or slippery hands.
Top Display
provides quick access to radio status information and critical notifications.
Intelligent Lighting
uses 3 simple colors to alert users of critical radio events like emergency, low battery, out of range and private calls and pages.
Voice Announcement
provides audible confirmation of zone/channel selections and various feature like scan, direct mode, emergency, encryption and controls lock.
Radio Profiles
allows the agency to create custom user experience based on the role and mission of the user.
Secure Wi-Fi And Data Connectivity
Update Your Radio Fleet Software
more efficiently without interrupting voice communications or waiting for idle radios.
Up To 20 Wi-Fi Networks
can be provisioned in the radio so that users can seamlessly receive radio software updates at facility Wi-Fi access points or in the field via Wi-Fi hot spots.
GPS Outdoor Personnel Tracking
shares your personnel's location, resulting in more efficient task assignment and enhanced officer safety.
Mission-Critical Wireless Bluetooth
Connects quickly and securely with remote speaker microphones and surveillance kits. Off-the-shelf BT audio and data accessories are also supported.
Ruggedness
Aluminum Alloy Endoskeleton
protects the radio's interior from water intrusion even if the outer housing is breached.
IP 68 rating (standard)
ensures the radio can withstand 2 meters of water submersion for 4 hours.
MIL-STD 810 C, D, E, F, G
rating ensures you can rely on your radio in the most extreme environments.
Tempered Glass
protects the radio's color display user interface from scratches, impact and pressure.
Dual Latch Battery
protects the radio from resetting, powering off or ejecting the battery upon impact from drops.
Security
Multiple Encryption Algorithms
AES, DES, ADP with up to 128 keys so sensitive information stays protected from scanners and eavesdroppers.
Over-the-air Re-key (OTAR)
to efficiently update encryption keys of fielded radios over time
P25 Radio Authentication
ensures only valid users can access the system.
Two-factor Authentication
allows users to securely query databases.
Brochures
Spec Sheets
Videos
APX 8000XE and XE500: Designed For the Mission. Engineered For the Extreme.
The APX 8000XE is redefining mission-critical communications by delivering an ultra-durable radio that combines unlimited interoperability, loud audio, and secure Wi-Fi connectivity. When combined with the XE500 Remote Speaker Microphone, you get the ultimate intrinsically safe solution designed for safety personnel in extreme environments.
 | NAF5085 700/800 MHz, GPS Whip Antenna |
 | PMAE4065 UHF, GPS Whip Antenna |
 | NAR6595 1/4 Wave, 700/800 MHz, GPS Stubby Antenna |
 | NAR6594 VHF, 700/800 MHz Dual Band, GPS Whip Antenna |
 | PMAT4001 VHF, UHF Dual Band, GPS Whip Antenna |
 | PMAS4001 UHF 700/800 MHz Dual Band, GPS Whip Antenna |
 | NAG4000 GPS Antenna (Directly connected to radio when a public safety microphone is used) |
 | PMAF4002 700/800 Public Safety Microphone Only Stubby Antenna |
Motorola IMPRES Two-way Batteries
 | PMNN4504 IMPRES 2 Li-ion 3400 mAh Battery, IP68 Rugged |
 | PMNN4505 IMPRES 2 Li-ion 4850 mAh Battery, IP68 Rugged, -30ºC Rated |
Mission-Critical Wireless Accessories (MCW)
 | NTN2570 Mission-Critical Wireless Earpiece with 12” cable and push-to-talk pod |
 | NTN2571 Mission-Critical Wireless push-to-talk pod |
 | NNTN8442 Mission-Critical Wireless Remote Control Keyfob with programmable buttons |
 | PMLN7052 1- Wire Surveillance kit with Translucent Acoustic tube for Wireless PTT Pods |
 | NNTN8294 1- Wire Earbud for Wireless Push-to-Talk pod with 11.5” cable, Black |
 | NNTN8295 1- Wire Earbud for Wireless Push-to-Talk pod with 45” cable, Black |
 | NNTN8296 Covert Audio Kit for Mission-Critical Wireless PTT Pod |
 | NNTN8385 Y-Adapter and Retention Hook for Mission-Critical Wireless Push-to-Talk Pod |
 | RLN4920 neck loop for Discreet Earpiece Kit |
 | NNTN8434 Accessory Kit, Completely Discreet Wireless Surveillance Kit |
 | NTN2572 Replacement Wireless Earpiece 12-inch cable |
 | RLN6489 Mission-Critical Wireless Covert Pack-N-Go Kit, Basic. Kit includes: NNTN8296 Basic Mission-Critical Wireless Covert Kit, NTN2571 Mission-Critical Wireless Push-to-Talk (PTT) Pod and NNTN8442 Mission Critical Wireless Remote Con-trol Unit |
 | RLN6501 Mission-Critical Wireless Covert Pack-N-Go Kit, Advanced. Kit includes: All contents of Covert Pack-n-Go Kit plus RLN4922 Completely Discreet Earpiece Kit and NNTN8385 Wireless neck loop Y-adapter |
 | PMLN5331 Carry Holder for 1.5, 2.5 and 3.5 Model Radios |
 | PMLN5323 Leather Carry Case with 3” Fixed Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
 | PMLN5326 Leather Carry Case with 3” Fixed Belt Loop for NNTN7033 and NNTN7034 Batteries |
 | PMLN5329 Leather Carry Case with 3” Fixed Belt Loop for NNTN7035, NNTN7036, NNTN7037 and NNTN7573 Batteries |
 | PMLN5324 Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
 | PMLN5327 Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7033 and NNTN7034 Batteries |
 | PMLN5330 Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7035, NNTN7036, NNTN7037 and NNTN7573 Batteries |
 | PMLN5560 Dual Display Radio Flip Leather Carry Case with 2.75” Swivel Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
 | PMLN5322 Nylon Carry Case with 3” Fixed Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
 | PMLN5325 Nylon Carry Case with 3” Fixed Belt Loop for NNTN7033 and NNTN7034 Batteries |
 | PMLN5328 Nylon Carry Case with 3” Fixed Belt Loop for NNTN7035, NNTN7036, NNTN7037 and NNTN7573 Batteries |
 | PMLN6712 Carry Case for APX Radio with Clamshell Battery |
 | NTN8266 2.5” Hard Plastic Belt Clip (not compatible with UHF Portable Radios) |
 | HLN6875 3” Hard Plastic Belt Clip |
 | HLN6602 Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch |
 | RLN4570 Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured Pouch |
Desktop, Single & Multi-unit Chargers
 | NNTN8844 IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, 100-240V |
 | NNTN8860 IMPRES 2 Single-Unit Fast Charger, 115V |
| NNTN8860_TAA IMPRES 2 Single-Unit Fast Charger, 115V, TAA compliant |
 | NNTN8863 IMPRES 2 Single-Unit Fast Charger, 100-240V |
 | NLN7967 Wall Mount Bracket for IMPRES Multi-Unit Chargers NNTN8844 |
Vehicular, Travel Chargers & Vehicular Adapter (VA)
 | NNTN7624 IMPRES Single-Unit Rapid Rate Vehicular Charger |
 | NNTN8527 APX Vehicular Adapter includes Fused Power Cable, 2 Keys for the Lock, Screws for Attaching Vehicular Adapter to the Trunnion Mounting Bracket & Quick Start Guide. |
 | RLN6434 Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
Ear Microphone Systems
 | PMLN5653 IMPRES Ear Microphone with Bone Conduction and programmable button, black |
 | 0180300E25 Earguard with Adjustable Loop |
Surveillance Kits & Earpieces
 | PMLN6125 1-Wire Receive-only earpiece, black |
 | PMLN6126 1-Wire Receive-only earpiece, beige |
 | PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
 | PMLN6128 IMPRES 2-Wire Surveillance Kit, programmable button, beige |
 | PMLN6129 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6130 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige |
 | PMLN6123 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6124 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige |
 | ZMN6038 2-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | ZMN6039 3-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | ZMN6032 2-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | ZMN6031 3-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | BDN6664 1-Wire Receive-Only Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
 | BDN6726 1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| BDN6665 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6727 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| RLN5314 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded. Requires BDN6783 |
 | RLN5313 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
 | RLN5312 2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
| BDN6666 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
| BDN6728 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| BDN6667 2-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6669 2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
 | BDN6731 2-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | BDN6668 3-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6730 3-Wire Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | BDN6670 3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6732 3-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | PMLN5101 IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair) |
 | PMLN5096 Earset D-Shell |
 | PMLN5102 Ultra Lite Headset |
 | RMN5058 Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit |
 | PMLN5275 Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB |
 | RLN6490 XBT Operations-Critical Wireless Behind-the-Neck Headset |
 | RLN6491 XBT Operations-Critical Wireless Headband Style Headset |
3M Peltor Heavy-Duty Headsets
Direct Connect
 | RMN5137 MT Series Over-The-Head Headset, direct radio connect PELTOR PART NUMBER: MT7H79A-C5063-34 |
 | RMN5138 MT Series Neckband Headset, direct radio connect PELTOR PART NUMBER: MT7H79B-C5063-34 |
 | RMN5139 MT Series Hard Hat Attached Headset, direct radio connect PELTOR PART NUMBER: MT7H79P3E-C5063-34 |
PTT Adapter Configurations
 | PMLN6088 MT Series Over-the-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79A-34 |
 | RLN6477 MT Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79B-34 |
 | RMN4051 MT Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79P3E-34 |
 | RMN4052 TacticalPro Series Over-The-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7A-34 |
 | RMN5135 TacticalPro Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7B-07-34 |
 | RMN4053 TacticalPro Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7P3E-34 |
 | PMLN6095 PTT Nexus Adapter PELTOR PART NUMBER:FL5063-34 |
RSM Configurations
 | RMN4055 HT Series Listen Only Over-The-Head Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79A-34 |
 | RMN5132 HT Series Listen Only Neckband Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79B-34 |
 | RMN5133 HT Series Listen Only Hard Hat Attached Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79P3E-34 |
Tactical Solutions
 | PMLN6765 Tactical PTT/VOX Interface Module |
 | PMLN6827 Tactical PTT Only Interface Module |
 | PMLN6766 Tactical Boomless Temple Transducer (requires Interface Module PMLN6765 or PMLN6827) |
 | PMLN6828 Tactical Throat Microphone (requires Interface Module PMLN6765 or PMLN6827) |
 | PMLN6829 Tactical Ear Microphone (requires Interface Module PMLN6765 or PMLN6827) |
 | PMLN6833 Tactical Temple Transducer / Boom Mic (requires Interface Module PMLN6765 or PMLN6827) |
 | PMLN6767 Tactical Remote Body PTT (for use with Interface Module PMLN6765 or PMLN6827) |
 | PMLN6830 Tactical Remote Ring PTT (for use with Interface Module PMLN6765 or PMLN6827) |
APX XE500 Remote Speaker, High Impact Green
 | PMMN4106 The APX™ XE500 Remote Speaker Microphone (RSM) is designed with the user's extreme environment in mind. This high-visibility, high impact green RSM features an asymmetrical shape to help you find the controls without looking, even while wearing bulky gloves. Its large push-to-talk button and an extra-large emergency button, which illuminates orange when activated, are easy to locate, but shielded so they're not accidentally activated. |
XE RSM With Xtreme Temperature Cable
| NNTN8575A Xtreme Temperature Cable High Impact Green Housing |
 | NNTN8575ABLK Xtreme Temperature Cable Black Housing |
 | NNTN8575AYLW Xtreme Temperature Cable Yellow Housing |
XE RSM With Standard Cable
 | NNTN8203A Standard Cable High Impact Green Housing |
 | NNTN8203ABLK Standard Cable Black Housing |
 | NNTN8203AYLW Standard Cable Yellow Housing |
Remote Speaker Microphone (RSM)
 | NMN6271 IMPRES XP RSM with Dual Mic Noise Suppression, Volume Control, 1-Programmable Button and Orange Button. Rugged, Submersible (IP68) |
 | NMN6274 IMPRES XP RSM with Dual Mic Noise Suppression, 3.5mm threaded jack, Volume Control, 1-Programmable Button and Orange Button (IP55) |
 | RLN6554 Wireless RSM with Battery, Clip (RLN6544) and Dual Unit Charger (PMLN7120) |
 | HMN4104 IMPRES Display RSM with Audio Jack, Channel Selector, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | HMN4103 IMPRES Display RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | HMN4101 IMPRES RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | PMMN4083 IMPRES RSM Windporting, Rugged (IP68) |
 | PMMN4084 IMPRES RSM with 3.5mm Threaded and NON-Threaded Audio Jack and Orange Button. Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | PMMN4099 IMPRES Windporting RSM with Volume Toggle Switch, Orange Button, 3.5mm NON-Threaded Jack (IP55) |
 | PMMN4062 IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | PMMN4065 IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57) |
 | PMMN4069 IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55) |
Public Safety Microphones (For 700/800 MHz Models only)
 | PMMN4061 IMPRES Windporting Public Safety Microphone (30 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
 | PMMN4060 IMPRES Windporting Public Safety Microphone (24 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
 | PMMN4059 IMPRES Windporting Public Safety Microphone (18 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
© Day Wireless Systems.
Motorola Two Way Radio Dealer Oregon, Washington, California, Idaho, Wyoming, Utah.
DWS Contractors License: OR: CCB # 64950; CA: CSLB # 984020; WA: L&I # DAYWIS*934K1; MT: CR # 162474; ID: RCE # 45759
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC
and are used under license. All other trademarks are the property of their respective owners. © Motorola Solutions, Inc. All rights reserved.
