Motorola APX 6500

  • Motorola Solutions APX 6500
  • Motorola Solutions apx6500
  • Motorola Solutions apx6500 3

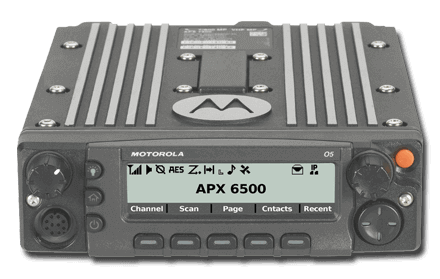

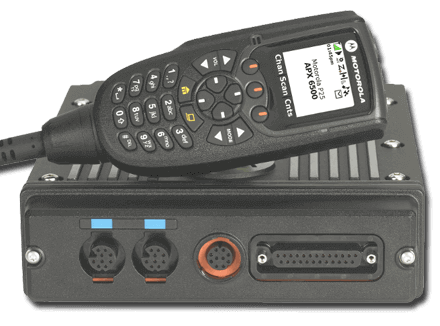

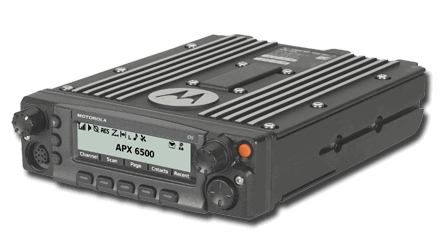

APX 6500

Motorola Solutions have put exceptional flexibility into an advanced mission-critical mobile radio that's easy to operate and intuitive to use. The APX 6500 P25 mobile allows users to choose from 4 control heads; mid- and high-power models and multiple installation configurations in an easy-to-install design. Innovative safety features such as GPS location tracking, intelligent lighting and one-touch controls help keep first responders safer than ever before.


Request a Quote

Performance

Frequency Band:
VHF, UHF R1, 700 MHz, 800 MHz

Frequency Range:
700/800 (764-870 MHz)
VHF (136-174 MHz)
UHF R1 (380-470 MHz)

Power Output:
10-35 watts 700/800 MHz, 25-110 watts VHF

Channel spacing:
6.25, 12.5, 25

Physical

Please see respective equipment

User Enviroment

Please see respective equipment

FLEXIBLE PLATFORM

  • Interchangeable control heads that best support your operational needs - O2, O3, O5, O7
  • Two transceiver options - high-power and mid-power
  • Dual control head support offered on the O2, O5 and O7 control heads

EASY TO INSTALL AND EFFORTLESS TO USE

  • Mid-power model fits into any existing XTL footprint, so you can reuse mounting holes and cables
  • High-power model trunnion design lets you remove the radio without removing the cables
  • 12 character RF ID label helps you track information without uninstalling your radio

CUTTING-EDGE TECHNOLOGY AND ADVANCED FEATURES

  • Project 25 Phase 2 technology provides twice the voice capacity
  • Integrated GPS lets you locate and track an individual or vehicle
  • Advanced features like intelligent lighting, radio profiles and text messaging improve communication and coordination

Brochures

Spec Sheets

VHF Antennas (RF Only)

Motorola HAD4006

HAD4006

VHF 1/4 Wave Antenna, 136-144 MHz
Motorola HAD4007

HAD4007

VHF 1/4 Wave Antenna, 144-150.8 MHz
Motorola HAD4008

HAD4008

VHF 1/4 Wave Antenna, 150.8-162 MHz
Motorola HAD4009

HAD4009

VHF 1/4 Wave Antenna, 162-174 MHz
Motorola HAD4016

HAD4016

VHF 1/4 Wave Antenna, 136-162 MHz
Motorola HAD4017

HAD4017

VHF 1/4 Wave Antenna, 146-174 MHz
Motorola HAD4021

HAD4021

VHF Wideband Antenna, 136-174 MHz
Motorola HAD4022

HAD4022

VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz
Motorola RAD4010ARB

RAD4010ARB

VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz

UHF Antennas (RF Only)

Motorola HAE6012

HAE6012

UHF 1/4 Wave Antenna, 380-433 MHz
Motorola HAE4003

HAE4003

UHF 1/4 Wave Antenna, 450-470 MHz
Image Not Available

HAE4004

UHF 1/4 Wave Antenna, 450-470 MHz
Image Not Available

HAE4012

UHF 3 dB Gain Antenna, 450-495 MHz
Motorola HAE4013

HAE4013

UHF 3 dB Gain Antenna, 494-512 MHz
Motorola HAE6010

HAE6010

UHF 3.5 dB Gain Antenna, 380-433 MHz
Image Not Available

HAE4011

UHF 3.5 dB Gain Antenna, 450-470 MHz
Motorola HAE6011

HAE6011

UHF 5 dB Gain Antenna, 380-433 MHz
Image Not Available

RAE4014ARB

UHF 5 dB Gain Antenna, 455-470 MHz
Motorola RAE4016ARB

RAE4016ARB

UHF 5 dB Gain Antenna, 494-512 MHz
Motorola HAE6013

HAE6013

UHF 2 dB Gain Wideband Antenna, 380-470 MHz
Image Not Available

HAE6015

UHF 2 dB Gain Wideband Antenna, 450-512 MHz
Image Not Available

HAE6031

UHF 2 dB Gain Wideband Antenna, 380-520 MHz
Motorola HAE6016

HAE6016

UHF Wideband Low Profile Antenna, 450-512 MHz

700/800 MHz Antennas (RF Only)

Motorola HAF4016

HAF4016

1/4 Wave Antenna, 762-870 MHz
Motorola HAF4013

HAF4013

3 dB Gain Low Profile Antenna, 762-870 MHz
Motorola HAF4014

HAF4014

3 dB Gain Elevated Feed Antenna, 762-870 MHz

GPS Antennas

Motorola HAG4000

HAG4000

GPS Roof Mount Antenna SMA Male connector with RG-174 17ft cable
Motorola PMAN4001

PMAN4001

GPS Glass Mount Antenna SMA Male connector with RG-174 17ft cable
Motorola HLN6042

HLN6042

Desktop Tray with Speaker
Motorola HPN4007

HPN4007

Power Supply, 25-60W, for low power radios (cord included)
Image Not Available

3060665A04

110V Line Cord, Replacement Cable for HPN4007
Motorola HLN7003

HLN7003

High Power Trunnion Kit; Quick Release with Lock
Motorola HLN7002

HLN7002

Mid Power Trunnion Kit; Standard Installation Bracket
Motorola HLN6372

HLN6372

Mid Power Trunnion Lock
Motorola HKN6186

HKN6186

Remote Mount Control Head Trunnion Compatible with 02/05 and 07 control heads.
Motorola HLN7031

HLN7031

Low Profile Remote Mount Control Head Trunnion Kit
Motorola HLN7022

HLN7022

Motorcycle Enclosure, Black

Cables

Control Head Cables

Motorola PMLN4958

PMLN4958

O3 Handheld Control Head Extension Cable, 17-Feet
Motorola PMLN4959

PMLN4959

O3 Handheld Control Head Accessory Cable
Motorola HKN6187

HKN6187

Control Head Cable with Connections for Power, Speaker and Headset Jack
Motorola HKN6188

HKN6188

Control Head Cable with Connections for Power and Speaker

Remote Mount Cables

Image Not Available

HKN6164

Remote Mount Cable, 131-Feet
Image Not Available

HKN6165

Remote Mount Cable, 115-Feet
Image Not Available

HKN6166

Remote Mount Cable, 75-Feet
Image Not Available

HKN6167

Remote Mount Cable, 50-Feet
Image Not Available

HKN6168

Remote Mount Cable, 30-Feet
Motorola HKN6169

HKN6169

Remote Mount Cable, 17-Feet
Motorola HKN6170

HKN6170

Remote Mount Cable, 10-Feet
Motorola HKN6196

HKN6196

Cable, Remote Control Head Vehicular Interface Port Connector for O5 Control Head
Image Not Available

HKN6961

Cable, Remote Control Head Mobile Accessory Port Connector for O5 Control Head

Power Cables

Motorola HKN4191

HKN4191

Mid Power, Dash Mount Power Cable, 10-Feet
Motorola HKN4192

HKN4192

Mid Power, Remote Mount Power Cable, 20-Feet
Motorola HLN6863

HLN6863

Mid Power, Rear Ignition Cable, Dash Mount
Motorola HKN6110

HKN6110

High Power, Remote Mount Power Cable 20-Feet
Motorola HKN6032

HKN6032

Motorcycle Power Cable

Data Cables

Motorola HKN6160

HKN6160

RS232 Cable for Rear Accessory Port, Dash Mount Only, 6-Feet
Image Not Available

HKN6161

RS232 Cable for Rear Accessory Port, Remote Mount Only, 20-Feet
Motorola HKN6183

HKN6183

RS232 Cable for Mobile Microphone Port
Motorola HKN6122

HKN6122

RS232 Cable for J600 Transceiver Interconnect Board, 22-Feet

Keyload Cables

Image Not Available

TKN8531

Keyloader Cable, KVL3000 and KVL4000
Motorola HKN6182

HKN6182

Keyload Adapter for Mobile Microphone Port

External Alarm Accessories

Motorola HLN6953

HLN6953

External Alarm Buzzer
Motorola HLN6969

HLN6969

External Alarm Relays
Motorola HMN4079

HMN4079

Keypad Microphone
Motorola HMN1090

HMN1090

Standard Palm Microphone
Motorola HMN1089

HMN1089

Water Resistant Palm Microphone
Motorola HMN1079

HMN1079

Water Resistant Palm Microphone for Motorcycle Mounted Mobiles
Motorola HMN4097

HMN4097

Telephone Keypad Handset with Hang-Up Cup
Motorola HMN4097

HKN1018

Hang-Up Handset with Armored Cable
Motorola HKN1018

HLN1457

Handset with Hang-Up Cup
Motorola RMN5070

RMN5070

Desktop Microphone
Motorola RMN5054

RMN5054

IMPRES Visor Microphone, requires PTT Switch GLN7278 or RLN5926

Mobile Microphone Accessories

Motorola HLN5391

HLN5391

Microphone Hang-Up Clip
Motorola PMKN4093

PMKN4093

Microphone Extension Cable, 2-Feet.

Not compatible with HMN4097 handset or HMN4079 Keypad
Motorola PMKN4033

PMKN4033

Microphone Extension Cable, 10-Feet.

Not compatible with HMN4097 handset or HMN4079 Keypad
Motorola PMKN4034

PMKN4034

Microphone Extension Cable, 20-Feet.

Not compatible with HMN4097 handset or HMN4079 Keypad
Motorola HLN5131

HLN5131

Emergency Push Button, can be used with the Visor Microphone
Motorola HLN5113

HLN5113

Emergency Footswitch, can be used with the Visor Microphone
Motorola GLN7278

GLN7278

Footswitch Push-To-Talk, can be used with the Visor Microphone
Motorola RLN5926

RLN5926

Push Button Push-To-Talk, can be used with the Visor Microphone
Motorola HSN4038

HSN4038

Remote Mount, Water Resistant Speaker, 7.5 Watt Rated Audio
Motorola HSN4040

HSN4040

Remote Mount, Water Resistant Speaker, 15 Watt Rated Audio
Motorola HSN4018

HSN4018

Water Resistant Speaker, 13 Watt Rated Audio
Motorola HSN4032

HSN4032

Non-Water Resistant Speaker, 13 Watt Rated Audio
Motorola TDN2651

TDN6251

Siren Speaker, Round with Chrome Finish
Motorola TDN2652

TDN6252

Siren Speaker, Rectangular with White Finish
Motorola TDN2654

TDN6254

Siren Speaker, Round with Grey Finish
Motorola TDN2653

TDN6253

Siren Speaker, Under Hood with Grey Finish

Siren Accessories

Motorola H1338

H1338

Status/Message Direct Entry Keypad, 8 Buttons
Motorola HLN1439

HLN1439

Mobile Siren
Motorola HLN6819

HLN6819

Siren Switchbox
Motorola H1615

H1615

Mode Direct Entry Keypad, 8-Buttons
Image Not Available

HKN6146

Siren Cable, O3 Siren to Switchbox
Image Not Available

HKN6145

Siren Cable, Direct Keypad for O3 Control Head
Motorola HKN6189

HKN6189

Direct Entry Keypad Cable, DEK to O5 Control Head, rear connector
Image Not Available

HKN4363

Siren Cable, O5 Siren to Switchbox

Universal Relay Controller

Image Not Available

PMUN1046

Universal Relay Controller for O9 Control Head, 10 DC Outputs, 15 Amps per Channel
Image Not Available

3064153H05

Universal Relay Controller to Transceiver Cable
Motorola RLN6551

RLN6551

Long Range Wireless Mobile Accessory Kit, includes Wireless Remote Speaker Microphone (RLN6544), Mobile Microphone Bluetooth Gateway (PMMN4097C), Vehicular Charger (PMMN6716)
Image Not Available

RLN6552

Long Range Wireless Mobile Accessory Kit (No Power Charger), includes Wireless Remote Speaker Microphone (RLN6544), Mobile Microphone Bluetooth Gateway (PMMN4097C), Charger must be purchased separately
