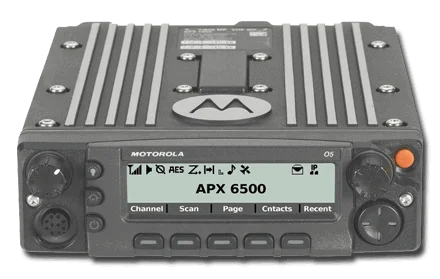

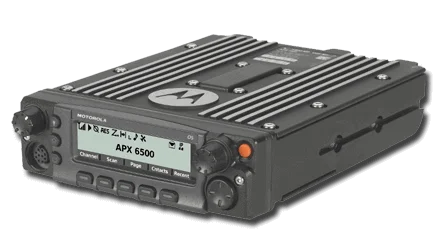

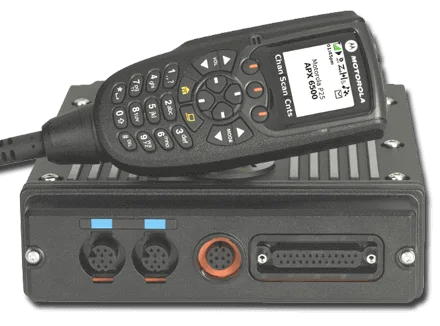

Motorola APX 6500 Enhanced
APX 6500
You may not know what the next call will entail, but you do know that your team needs communication they can count on. Whether on a motorcycle, in a squad car or a fire truck, the rugged and compact design of the evolved APX™ 6500 mobile radio is designed to maximize the real estate in your vehicle and keep your entire agency safely connected. Now with integrated Wi-Fi, Bluetooth and SmartConnect, the APX 6500 gives you more ways to manage your radio and stay connected. And when your vehicle sustains a high impact, the radio can automatically alert dispatch. Security is more important than ever. Criminals are testing you on the streets and over the air. Fight back with multiple levels of protection to encrypt and secure your voice and data communication against eavesdropping.
Stay connected, keep safe and secure your communications with the APX 6500 single-band mobile radio.
For APX 6500 on UHF Range 2 click here
Performance
Frequency Band:
VHF, UHF R1, 700 MHz, 800 MHz
Frequency Range:
700/800 (764-870 MHz)
VHF (136-174 MHz)
UHF R1 (380-470 MHz)
Power Output:
10-35 watts 700/800 MHz, 25-110 watts VHF
Channel spacing:
6.25, 12.5, 25
Physical
Please see respective equipment
User Enviroment
Please see respective equipment
GENERAL FEATURES
Channel Capacity: 1,000 channels standard, expandable to 3,000 channels
Encryption Algorithms: 256-bit AES, ADP, DES, DES-XL, DES-OFB, DVP-XL
OPERATING MODES
Digital Trunking: 9600 Baud APCO P25 Phase 1 FDMA and Phase 2 TDMA
Analog Trunking: 3600 Baud SmartNet®, SmartZone®, Omnilink
Digital Conventional: APCO 25
Analog Conventional: Analog MDC 1200, Quik Call II System Configurations
SmartConnect Connectivity
MANAGEMENT
Customer Programming Software (CPS)
Radio Management
Over-the-air Programming (OTAP)
INTEGRATED WI-FI, GPS AND DATA CONNECTIVITY
Wi-Fi 802.11 b/g/n with up to 20 Wi-Fi networks provisioned in the radio
Data Modem Tethering
ASTRO 25 Integrated Voice and Data
Enhanced Data
Integrated GPS/GLONASS for Outdoor Location Tracking
Mission Critical Geofence
Personnel Accountability
SmartConnect
ViQi Virtual Partner
Bluetooth (Version 4.2)
SECURITY
Tactical Inhibit
P25 Authentication
Software Key
Single-key ADP Encryption
Multikey for 128 keys and multi-algorithm
Over-the-air Rekeying (OTAR)
Brochures
Spec Sheets
Fact Sheets
VHF Antennas (RF Only)
 | HAD4006 VHF 1/4 Wave Antenna, 136-144 MHz |
 | HAD4007 VHF 1/4 Wave Antenna, 144-150.8 MHz |
 | HAD4008 VHF 1/4 Wave Antenna, 150.8-162 MHz |
 | HAD4009 VHF 1/4 Wave Antenna, 162-174 MHz |
 | HAD4016 VHF 1/4 Wave Antenna, 136-162 MHz |
 | HAD4017 VHF 1/4 Wave Antenna, 146-174 MHz |
 | HAD4021 VHF Wideband Antenna, 136-174 MHz |
 | HAD4022 VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz |
 | RAD4010ARB VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz |
UHF Antennas (RF Only)
 | HAE6012 UHF 1/4 Wave Antenna, 380-433 MHz |
 | HAE4003 UHF 1/4 Wave Antenna, 450-470 MHz |
 | HAE4004 UHF 1/4 Wave Antenna, 450-470 MHz |
 | HAE4012 UHF 3 dB Gain Antenna, 450-495 MHz |
 | HAE4013 UHF 3 dB Gain Antenna, 494-512 MHz |
 | HAE6010 UHF 3.5 dB Gain Antenna, 380-433 MHz |
| HAE4011 UHF 3.5 dB Gain Antenna, 450-470 MHz |
 | HAE6011 UHF 5 dB Gain Antenna, 380-433 MHz |
| RAE4014ARB UHF 5 dB Gain Antenna, 455-470 MHz |
 | RAE4016ARB UHF 5 dB Gain Antenna, 494-512 MHz |
 | HAE6013 UHF 2 dB Gain Wideband Antenna, 380-470 MHz |
 | HAE6015 UHF 2 dB Gain Wideband Antenna, 450-512 MHz |
 | HAE6031 UHF 2 dB Gain Wideband Antenna, 380-520 MHz |
 | HAE6016 UHF Wideband Low Profile Antenna, 450-512 MHz |
700/800 MHz Antennas (RF Only)
 | HAF4016 1/4 Wave Antenna, 762-870 MHz |
 | HAF4013 3 dB Gain Low Profile Antenna, 762-870 MHz |
 | HAF4014 3 dB Gain Elevated Feed Antenna, 762-870 MHz |
GPS Antennas
 | HAG4000 GPS Roof Mount Antenna SMA Male connector with RG-174 17ft cable |
 | PMAN4001 GPS Glass Mount Antenna SMA Male connector with RG-174 17ft cable |
 | HLN6042 Desktop Tray with Speaker |
 | HPN4007 Power Supply, 25-60W, for low power radios (cord included) |
 | 3060665A04 110V Line Cord, Replacement Cable for HPN4007 |
 | HLN7003 High Power Trunnion Kit; Quick Release with Lock |
 | HLN7002 Mid Power Trunnion Kit; Standard Installation Bracket |
 | HLN6372 Mid Power Trunnion Lock |
 | HKN6186 Remote Mount Control Head Trunnion Compatible with 02/05 and 07 control heads. |
 | HLN7031 Low Profile Remote Mount Control Head Trunnion Kit |
 | HLN7022 Motorcycle Enclosure, Black |
Cables
Control Head Cables
 | PMLN4958 O3 Handheld Control Head Extension Cable, 17-Feet |
 | PMLN4959 O3 Handheld Control Head Accessory Cable |
 | HKN6187 Control Head Cable with Connections for Power, Speaker and Headset Jack |
 | HKN6188 Control Head Cable with Connections for Power and Speaker |
Remote Mount Cables
 | HKN6164 Remote Mount Cable, 131-Feet |
 | HKN6165 Remote Mount Cable, 115-Feet |
 | HKN6166 Remote Mount Cable, 75-Feet |
 | HKN6167 Remote Mount Cable, 50-Feet |
 | HKN6168 Remote Mount Cable, 30-Feet |
 | HKN6169 Remote Mount Cable, 17-Feet |
 | HKN6170 Remote Mount Cable, 10-Feet |
 | HKN6196 Cable, Remote Control Head Vehicular Interface Port Connector for O5 Control Head |
| HKN6961 Cable, Remote Control Head Mobile Accessory Port Connector for O5 Control Head |
Power Cables
 | HKN4191 Mid Power, Dash Mount Power Cable, 10-Feet |
 | HKN4192 Mid Power, Remote Mount Power Cable, 20-Feet |
 | HLN6863 Mid Power, Rear Ignition Cable, Dash Mount |
 | HKN6110 High Power, Remote Mount Power Cable 20-Feet |
 | HKN6032 Motorcycle Power Cable |
Data Cables
 | HKN6160 RS232 Cable for Rear Accessory Port, Dash Mount Only, 6-Feet |
| HKN6161 RS232 Cable for Rear Accessory Port, Remote Mount Only, 20-Feet |
 | HKN6183 RS232 Cable for Mobile Microphone Port |
 | HKN6122 RS232 Cable for J600 Transceiver Interconnect Board, 22-Feet |
Keyload Cables
| TKN8531 Keyloader Cable, KVL3000 and KVL4000 |
 | HKN6182 Keyload Adapter for Mobile Microphone Port |
External Alarm Accessories
 | HLN6953 External Alarm Buzzer |
 | HLN6969 External Alarm Relays |
 | HMN4079 Keypad Microphone |
 | HMN1090 Standard Palm Microphone |
 | HMN1089 Water Resistant Palm Microphone |
 | HMN1079 Water Resistant Palm Microphone for Motorcycle Mounted Mobiles |
 | HMN4097 Telephone Keypad Handset with Hang-Up Cup |
 | HKN1018 Hang-Up Handset with Armored Cable |
 | HLN1457 Handset with Hang-Up Cup |
 | RMN5070 Desktop Microphone |
 | RMN5054 IMPRES Visor Microphone, requires PTT Switch GLN7278 or RLN5926 |
Mobile Microphone Accessories
 | HLN5391 Microphone Hang-Up Clip |
 | PMKN4093 Microphone Extension Cable, 2-Feet. Not compatible with HMN4097 handset or HMN4079 Keypad |
 | PMKN4033 Microphone Extension Cable, 10-Feet. Not compatible with HMN4097 handset or HMN4079 Keypad |
 | PMKN4034 Microphone Extension Cable, 20-Feet. Not compatible with HMN4097 handset or HMN4079 Keypad |
 | HLN5131 Emergency Push Button, can be used with the Visor Microphone |
 | HLN5113 Emergency Footswitch, can be used with the Visor Microphone |
 | GLN7278 Footswitch Push-To-Talk, can be used with the Visor Microphone |
 | RLN5926 Push Button Push-To-Talk, can be used with the Visor Microphone |
 | HSN4038 Remote Mount, Water Resistant Speaker, 7.5 Watt Rated Audio |
 | HSN4040 Remote Mount, Water Resistant Speaker, 15 Watt Rated Audio |
 | HSN4018 Water Resistant Speaker, 13 Watt Rated Audio |
 | HSN4032 Non-Water Resistant Speaker, 13 Watt Rated Audio |
 | TDN6251 Siren Speaker, Round with Chrome Finish |
 | TDN6252 Siren Speaker, Rectangular with White Finish |
 | TDN6254 Siren Speaker, Round with Grey Finish |
 | TDN6253 Siren Speaker, Under Hood with Grey Finish |
Siren Accessories
 | H1338 Status/Message Direct Entry Keypad, 8 Buttons |
 | HLN1439 Mobile Siren |
 | HLN6819 Siren Switchbox |
 | H1615 Mode Direct Entry Keypad, 8-Buttons |
| HKN6146 Siren Cable, O3 Siren to Switchbox |
| HKN6145 Siren Cable, Direct Keypad for O3 Control Head |
 | HKN6189 Direct Entry Keypad Cable, DEK to O5 Control Head, rear connector |
| HKN4363 Siren Cable, O5 Siren to Switchbox |
Universal Relay Controller
| PMUN1046 Universal Relay Controller for O9 Control Head, 10 DC Outputs, 15 Amps per Channel |
| 3064153H05 Universal Relay Controller to Transceiver Cable |
 | RLN6551 Long Range Wireless Mobile Accessory Kit, includes Wireless Remote Speaker Microphone (RLN6544), Mobile Microphone Bluetooth Gateway (PMMN4097C), Vehicular Charger (PMMN6716) |
| RLN6552 Long Range Wireless Mobile Accessory Kit (No Power Charger), includes Wireless Remote Speaker Microphone (RLN6544), Mobile Microphone Bluetooth Gateway (PMMN4097C), Charger must be purchased separately |
