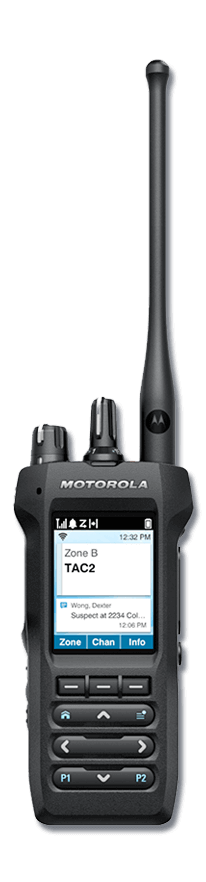

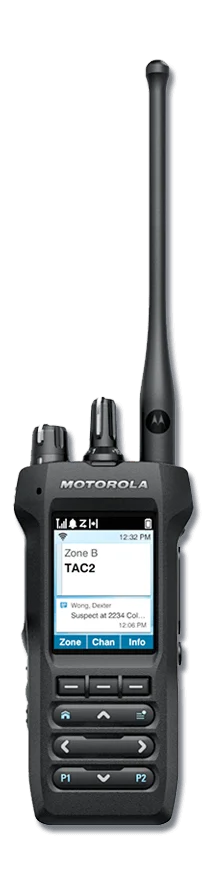

Motorola APX N50
APX N50
SIMPLE. RELIABLE. SECURE
Staying connected and being able to collaborate, whenever, wherever, is a prerequisite for mobile workers.
Our APX N50 is a slim yet rugged pick-up-and-go radio that’s designed to give first responders, public-safety support and administrative staff secure communications that they can rely on in the field to stay organized and effectively respond to whatever the day throws at them.
Remarkably small and sleek and tough enough for all day use in harsh environments. ViQi Basic Voice Control, large controls and display make it simple to use on the go. This is a radio that optimizes speed and space. Whatever the environment, users can hear and be heard with loud and clear audio. Advanced microphones and exclusive speaker design combined with leading APX audio algorithms automatically filter background noise and adjust volume levels to the environment, keeping hands free and focus optimized.
The APX N50 works reliably across a variety of frequencies, modes and protocols. It connects seamlessly with accessories and other devices via Bluetooth® or Wi-Fi, and can even switch between radio coverage and Wi-Fi with SmartConnect. Hardware encryption algorithms, batch radio programming tools, and a portfolio of services and tech support keep communications secure and ensure devices always have the latest features.
Performance
Frequency Band:
700/800 Mhz
Frequency Range:
762-776, 792-806 MHz; 806-825, 851-870 MHz
Power Output:
1-3 Watt
Number of Channels/Zones:
512 Channels / 50 Zones
Channel spacing:
12.5 / 20 / 25 kHz
Physical
Dimensions H x W x D (with standard battery)
5.3 x 2.2 x 1.3 inches
Weight (with standard battery)
13.1 oz
Keypad / Keys
Display
2.4” Mission-critical Display: 240x320 TFT 65k Color
Transflective Display
User Enviroment
Operating temperature
(-22 to +140 ºF)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP6x Dust
IPx8 submersion (2 m, 2 hr)
SLIM AND SLEEK.
TOUGH AND POWERFUL.
A super compact, simple layout radio to carry around all day long. Despite its size, it retains the built-in toughness of our APX portfolio with a modern industrial design and familiar control placement.
TOUGH AS NAILS
This radio is a powerful companion in the field. The APX N50 portable radio is rated IP68, supports immersion in 2 meters of water for up to 2 hours, and tested to military standards so it’s ready to operate reliably in challenging environments.
OPTIMIZING SPACE AND SPEED
The slim design doesn’t compromise usability. A variety of features accelerate radio operation to prioritize situational awareness and quick response. Large tactile controls and programmable buttons in a familiar location allow easy access to critical presets. The tough 2.4” front display presents a menu with information at a glance, and the large keypad is easy to navigate from first use, right out of the box.
CONTROL WITH YOUR VOICE
ViQi Basic Voice Control makes changing radio settings as simple as talking, with a touch of a button and specific voice commands. Easily switch to the home channel or your favorite presets. Adjust the volume, change an audio profile, check battery, or scan multiple channels without taking your eyes off your surroundings.
Brochures
Catalogs
Spec Sheets
SmartConnect
ViQi Virtual Assistant
Videos
APX N P25 Radios - Ensuring a Secure Radio Solution Inside and Out
Introducing APX N P25 Line of Radios
APX N P25 Radios - Combining classic ergonomics with new interfaces
 | AN000411A01 700/800 MHz Short Whip Antenna |
 | 32012144001 Gray Antenna ID Band (pack of 10) |
 | 32012144002 Yellow Antenna ID Band (pack of 10) |
 | 32012144003 Green Antenna ID Band (pack of 10) |
 | 32012144004 Blue Antenna ID Band (pack of 10) |
 | 32012144005 Purple Antenna ID Band (pack of 10) |
Motorola IMPRES Two-way Batteries
 | PMNN4813 IMPRES 2 Li-ion 2850 mAh Battery, IP68 Rugged* |
 | PMNN4815 IMPRES 2 Li-ion 3200 mAh Battery, IP68 Rugged* |
 | PMLN8369 APX N30/APX N50 2.0" Belt Clip |
 | PMLN8370 APX N30/APX N50 2.5" Belt Clip |
Desktop, Single & Multi-unit Chargers
 | PMPN4820 IMPRES 2 Single-Unit Charger, US/NA 115V |
 | PMPN4594 IMPRES 2 Multi-Unit Charger, US/NA 100-240V |
 | AS000130A01 Pocket to use with IMPRES 2 Multi-Unit Charger |
 | BR000272A01 Wall mount bracket for PMPN4594 Charger |
 | 25009297002 Replacement Power Supply Unit for IMPRES 2 Single-Unit Charger, US/NA 115V |
 | PS000242A01 Replacement Power Supply Unit for IMPRES 2 Multi-Unit Charger, 100-240 VAC without Power Cord |
Surveillance Kits & Earpieces
 | PMLN8341 IMPRES™ 1-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
 | PMLN8342 IMPRES™ 2-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
 | PMLN8343 IMPRES™ 3-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
 | PMLN8295 IMPRES™ 2-Wire Swivel Earhook with Removable Eartip, Loud Audio, Black |
 | PMLN8337 IMPRES™ 1-Wire Single Earbud with Removable Earhook, Loud Audio, Black |
 | PMLN8092 Replacement Quick Disconnect Translucent Tube with Clear Rubber Eartip |
 | PMLN8068 Replacement Rubber Eartip, Small (5 per pack) |
 | PMLN8069 Replacement Rubber Eartip, Medium (5 per pack) |
 | PMLN8070 Replacement Rubber Eartip, Large (5 per pack) |
 | PMLN8363 Replacement Rubber Sleeve, Small (25 per pack) |
 | PMLN8364 Replacement Rubber Sleeve, Medium (25 per pack) |
 | PMLN8365 Replacement Rubber Sleeve, Large (25 per pack) |
Headsets
 | PMLN8085 Heavy Duty Behind-the-Head Headset with Noise-Canceling Boom Microphone
|
 | PMLN8086 Heavy Duty Over-the-Head Headset with Noise-Canceling Boom Microphone
|
3M PELTOR HEADSETS
PTT Adapter Configurations
 | PMLN8265 CH-3 Series Over-the-Head Headset with Nexus Connector
|
 | PMLN8266 CH-3 Series Neckband Headset with Nexus Connector
|
 | PMLN8267 CH-3 Series Hard Hat Attached with Nexus Connector (Hat not included)
|
 | PMLN8297 PTT Nexus Adapter
|
Remote Speaker Microphone (RSM)
 | PMMN4128 RM780 RSM |
Please Contact Us for more information.
