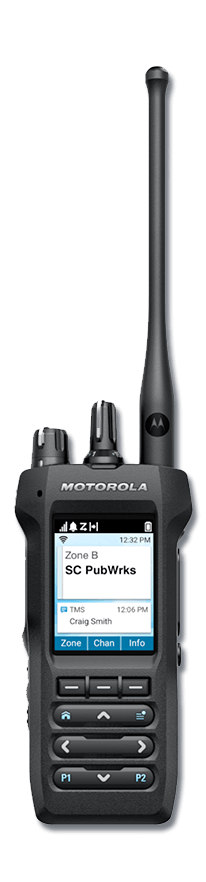

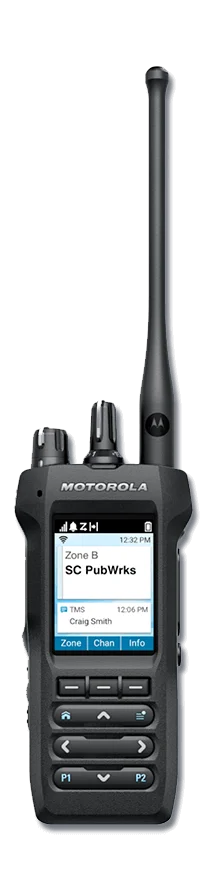

Motorola APX N30
APX N30
SINGLE-BAND P25 PORTABLE TWO-WAY RADIO
EASY. EFFICIENT. ESSENTIAL
Seamless communication from a sleek radio. Easy to use and simple to manage. The APX N30 single-band P25 portable radio connects your teams to reliable P25 radio networks with all the essential features they need and nothing that they don’t. The radio solution for mobile workers in public works, government services, education teams and other municipal roles looking for APX performance in a pared down, cost effective package.
Small and sleek, it’s a radio that’s easy to carry while being tough enough for use in harsh environments. ViQi Basic Voice Control, large controls and display make it simple to use on the go. And with loud and clear audio, crucial messages get through, even in noisy environments.
The APX N30 works reliably and securely across a variety of frequencies, modes and protocols. It connects seamlessly with accessories and other devices via Bluetooth or Wi-Fi. With SmartConnect, it can even switch between radio coverage and Wi-Fi connections. Choose whether to program offline or optimize fleet management by programming them in batches to save valuable time and resources. With a portfolio of services and tech support, radios stay safe and reliable throughout their lifetime.
Performance
Frequency Band:
700/800 Mhz
Frequency Range:
762-776, 792-806 MHz; 806-825, 851-870 MHz
Power Output:
1-3 Watt
Number of Channels/Zones:
512 Channels / 50 Zones
Channel spacing:
12.5 / 20 / 25 kHz
Physical
Dimensions H x W x D (with standard battery)
5.3 x 2.2 x 1.3 inches
Weight (with standard battery)
13.1 oz
Keypad / Keys
Display
2.4” Mission-critical Display: 240x320 TFT 65k Color
Transflective Display
User Enviroment
Operating temperature
(-22 to +140 ºF)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP6x Dust
IPx8 submersion (2 m, 2 hr)
EXPEDITE RADIO OPERATION
A layout that expedites radio operation in the field. Classic large tactile controls, programmable
buttons for quick access to favorite presets, a 2.4” front display with intuitive menus and a large
keypad that prioritizes situational awareness and quick response.
CONTROL WITH YOUR VOICE
ViQi Basic Voice Control makes changing radio settings as simple as talking, with a touch of
a button and simple and specific voice commands. Easily switch to the home channel or your
favorite presets. Adjust the volume, change an audio profile, check battery, or scan multiple
channels without taking your eyes off your surroundings.
OPERATE IN TOUGH CONDITIONS
Despite its size and simplicity, the APX N30 retains the built-in toughness of the APX line with a
modern industrial design featuring familiar control placement and T-grip for easily holding in wet
conditions. With an IP68 rating, submersible in up to 2 meters of water for 2 hours, and a design
tested to military standards, it’s ready to operate safely and reliably in everyday environments.
WORK CONFIDENTLY
Loud and clear audio ensures crucial messages get through. Man Down/Fall Alert gives peace of
mind to workers working in isolated conditions and a suite of accessories meets a variety of user
needs and working environments.
Brochures
Catalogs
Spec Sheets
SmartConnect
ViQi Virtual Assistant
Videos
APX N P25 Radios - Ensuring a Secure Radio Solution Inside and Out
Introducing APX N P25 Line of Radios
APX N P25 Radios - Combining classic ergonomics with new interfaces
 | AN000411A01 700/800 MHz Short Whip Antenna |
 | 32012144001 Gray Antenna ID Band (pack of 10) |
 | 32012144002 Yellow Antenna ID Band (pack of 10) |
 | 32012144003 Green Antenna ID Band (pack of 10) |
 | 32012144004 Blue Antenna ID Band (pack of 10) |
 | 32012144005 Purple Antenna ID Band (pack of 10) |
Motorola IMPRES Two-way Batteries
 | PMNN4813 IMPRES 2 Li-Ion 2850 mAh Battery, IP68 Rugged* |
 | PMNN4815 IMPRES 2 Li-Ion 3200 mAh Battery, IP68 Rugged* |
 | PMLN8369 APX N30/APX N50 2.0" Belt Clip |
 | PMLN8370 APX N30/APX N50 2.5" Belt Clip |
Desktop, Single & Multi-unit Chargers
 | PMPN4820 IMPRES 2 Single-Unit Charger, US/NA 115V |
 | PMPN4594 IMPRES 2 Multi-Unit Charger, US/NA 100-240V |
 | AS000130A01 Pocket to use with IMPRES 2 Multi-Unit Charger |
 | BR000272A01 Wall mount bracket for PMPN4594 Charger |
 | 25009297002 Replacement Power Supply Unit for IMPRES 2 Single-Unit Charger, US/NA 115V |
 | PS000242A01 Replacement Power Supply Unit for IMPRES 2 Multi-Unit Charger, 100-240 VAC without Power Cord |
Surveillance Kits & Earpieces
 | PMLN8341 IMPRES™ 1-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
 | PMLN8342 IMPRES™ 2-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
 | PMLN8343 IMPRES™ 3-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
 | PMLN8295 IMPRES™ 2-Wire Swivel Earhook with Removable Eartip, Loud Audio, Black |
 | PMLN8337 IMPRES™ 1-Wire Single Earbud with Removable Earhook, Loud Audio, Black |
 | PMLN8092 Replacement Quick Disconnect Translucent Tube with Clear Rubber Eartip |
 | PMLN8068 Replacement Rubber Eartip, Small (5 per pack) |
 | PMLN8069 Replacement Rubber Eartip, Medium (5 per pack) |
 | PMLN8070 Replacement Rubber Eartip, Large (5 per pack) |
 | PMLN8363 Replacement Rubber Sleeve, Small (25 per pack) |
 | PMLN8364 Replacement Rubber Sleeve, Medium (25 per pack) |
 | PMLN8365 Replacement Rubber Sleeve, Large (25 per pack) |
Headsets
 | PMLN8085 Heavy Duty Behind-the-Head Headset with Noise-Canceling Boom Microphone
|
 | PMLN8086 Heavy Duty Over-the-Head Headset with Noise-Canceling Boom Microphone
|
3M PELTOR HEADSETS
PTT Adapter Configurations
 | PMLN8265 CH-3 Series Over-the-Head Headset with Nexus Connector
|
 | PMLN8266 CH-3 Series Neckband Headset with Nexus Connector
|
 | PMLN8267 CH-3 Series Hard Hat Attached with Nexus Connector (Hat not included)
|
 | PMLN8297 PTT Nexus Adapter
|
Remote Speaker Microphone (RSM)
 | PMMN4128 RM780 RSM
|
Please Contact Us for more information.
