Motorola MOTOTRBO R5
Motorola
MOTOTRBO R5
MOTOTRBO R5 connects teams, helping boost efficiency and safety with clear, loud audio that cuts through background noise and intuitive status indications and controls so workers can focus on their tasks, all in a tough, compact device that’s built to last.
Performance
Frequency bands:
VHF, UHF
Frequency Range:
VHF: 136-174 MHz
UHF: 400-512 MHz
Number of Channels/Groups/Zones:
Limited Keypad Model: 256 Channels/ 50 Zones
Non-Keypad Model: 64 Channels/ 4 Zones
Power Output:
VHF: 5 Watts
UHF: 4 Watts
Channel Spacing:
12.5 / 25 kHz
Battery Life
MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
Digital / Analog Battery Life: 32 / 24 hrs
MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
Digital / Analog Battery Life: 32 / 24 hrs
MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888))
Digital / Analog Battery Life: 21.5 / 16 hrs
Physical
Dimensions H x W x D (with standard battery)
MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
4.82 x 2.2 x 1.6 inches
MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
4.82 x 2.2 x 1.6 inches
MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888)
4.82 x 2.2 x 1.37 inches
Weight (with standard battery)
MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
11.2 oz
MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
11.7 oz
MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888))
10 oz
User Enviroment
Operating temperature
-22 °F to 140 °F
Mil spec
IP Standards
IP67
Brochures
Buying Guide
Data Sheets
 | PMAE4079 UHF/GPS Combination Wideband Slim Whip Antenna (403-527 MHz) |
 | PMAD4117 VHF/GPS Combination Helical Antenna (136-155 MHz) |
 | PMAD4116 VHF/GPS Combination Helical Antenna (144-165 MHz) |
 | PMAD4118 VHF/GPS Combination Helical Antenna (152-174 MHz) |
 | PMAE4069 UHF/GPS Combination Stubby Antenna (403-450 MHz) |
 | PMAE4070 UHF/GPS Combination Stubby Antenna (440-490 MHz) |
 | PMAE4071 UHF/GPS Combination Stubby Antenna (470-527 MHz) |
 | PMAD4119 VHF/GPS Combination Stubby Antenna (136-148 MHz) |
 | PMAD4120 VHF/GPS Combination Stubby Antenna (146-160 MHz) |
 | PMAD4147 VHF Whip Antenna 136-174 MHz |
 | PMAD4121 VHF Stubby Antenna (160-174 MHz) |
 | 32012144001 Gray Antenna ID Band (pack of 10) |
 | 32012144002 Yellow Antenna ID Band (pack of 10) |
 | 32012144003 Green Antenna ID Band (pack of 10) |
 | 32012144004 Blue Antenna ID Band (pack of 10) |
 | 32012144005 Purple Antenna ID Band (pack of 10) |
 | PMNN4888 IMPRES Slim Li-Ion IP67 2200 mAh |
| PMNN4889 IMPRES High Capacity Li-Ion IP67 3200 mAh |
| PMNN4890 IMPRES UL High Capacity Li-Ion IP67 3200 mAh |
| PMLN8662 Hard Leather Carry Case, 3” Swivel Belt Loop For Limited Keypad Radio |
| PMLN8663 Hard Leather Carry Case, 3” Fixed Belt Loop For Limited Keypad Radio |
| PMLN8664 Nylon Case, 3” Fixed Belt Loop For Limited Keypad Radio |
| PMLN8665 Hard Leather Carry Case, 3” Swivel Belt Loop For No Keypad Radio |
| PMLN8666 Hard Leather Carry Case, 3” Fixed Belt Loop For No Keypad Radio |
| PMLN8667 Nylon Case, 3” Fixed Belt Loop For No Keypad Radio |
| PMPN4527 Desktop IMPRES Single Unit Charger |
| PMLN7269ANS Receive Only Extra Loud Earpiece, 3.5mm Jack (Black Color) |
Please contact us for more information
| PMMN4170 RM560 Remote Speaker Microphone, with 3.5mm Audio Jack, IP67 |
| PMMN4171 RM530 Remote Speaker Microphone, with 3.5mm Audio Jack, IP67 |
The Motorola MOTOTRBO R5 is available in the following models.

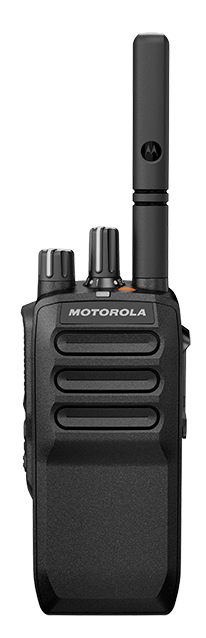

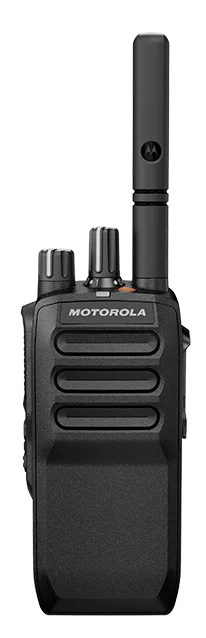

Non-Keypad Models
- AAH07JDC9SA1AN VHF, 136-174 MHz, 5 Watts, 64 Channels
- AAH07RDC9SA1AN UHF, 400-512 MHz, 4 Watts, 64 Channels

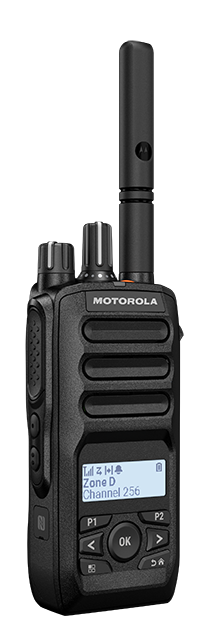

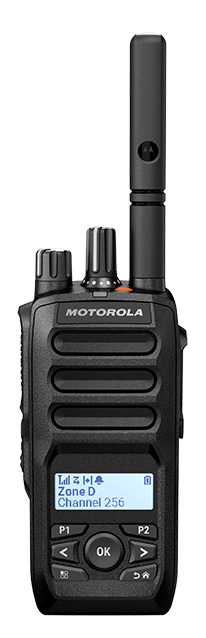

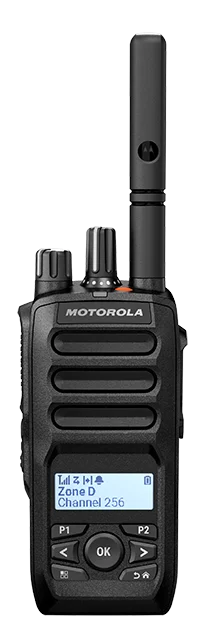

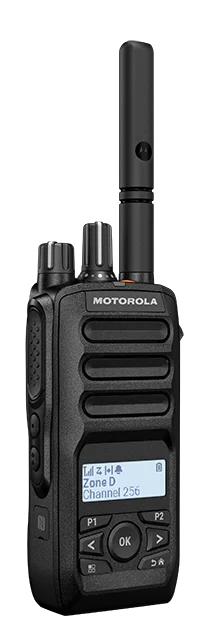

Limited Keypad Models
- AAH07JDH9SA1AN VHF, 136-174 MHz, 5 Watts, 256 Channels
- AAH07RDH9SA1AN UHF, 400-512 MHz, 4 Watts, 256 Channels
