PMAF4024 900MHZ (902-928MHZ) |
Motorola's DTR Series radios are now more reliable than ever - enabling interference-free, private communications to help your team stay focused while keeping communications private.

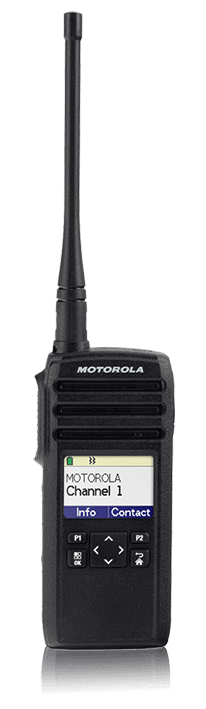

With its slim, rugged design the DTR700 digital two-way radio is equipped with 50 channel capacity. It is IP54 rated and operates at 900 MHz. A full-graphic color display and intuitive navigation menu help you quickly locate all radio features. The DTR700 offers flexible communication options, including Digital One-to-One Calling and Digital One-to-Many Calling. The DTR700 also provides great coverage, long battery life and digital audio quality that is loud and clear audio wherever you are.
Frequency Band:
900 MHz
Frequency Range:
900 MHz ISM FHSS
Power Output:
1 W
Number of Channels/Groups/Zones:
50 Channels
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
16.5 hrs
Dimensions H x W x D (with standard battery)
5.06” H x 2.2” W x 1.06” D
(128.5mm H x 56mm W x 27mm D)
Weight (with standard battery)
7.87oz. (223 g)
Keypad / Keys
Limited
Display
Full, Color
Operating temperature
-30C to +60C
Mil spec
810 D, 810 C, 810 E, 810 F, 810 G
IP Standards
IP54
* Typical battery life, 5/5/90 profile at maximum transmitter power. Actual observed runtimes may vary.
PMAF4024 900MHZ (902-928MHZ) |
PMNN4578 Li-ion 2500 mAh, 3.7v Li-ion 2500 mAh, 3.7v |
PMLN7939 Swivel Clip Holster |
PMPN4469 Single Unit Charger | |
PMPN4465 6-Pocket Multi Unit Charger |
HKLN4604 Swivel Earpiece with in-line microphone and push-to-talk | |
HKLN4599 Earpiece with in-line microphone and push-to-talk | |
HKLN4601 Surveillance Kit with in-line microphone and push-to-talk |
The Motorola DTR700 is available in the following models.
