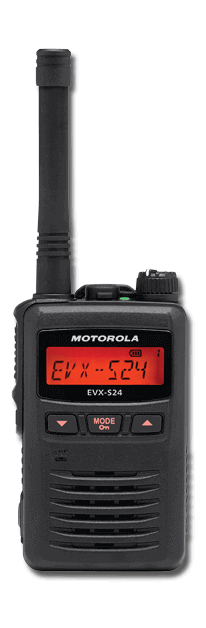

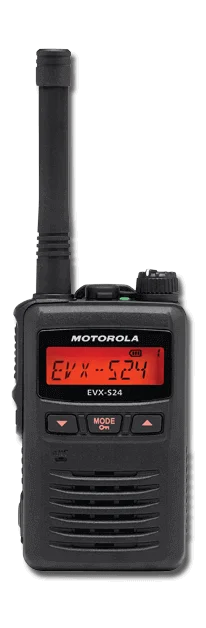

Motorola EVX-S24

  • Motorola Solutions EVX-S24
Motorola

EVX-S24

Our Smallest, Water Submersible Digital Portable Radio

You can afford to enhance your communications with the digital performance of eVerge™ two-way radios. eVerge radios are compact and precision-engineered to deliver value without sacrificing quality — giving you more capabilities and the flexibility you need to communicate at your best.

  • 8-Character Alphanumeric Display
  • 256 channels
  • 4 Programmable Keys
  • UHF: 403-470 MHz
  • CTCSS/DCS Encode and Decode
  • Multiple Scan Options
  • ARTS

Request a Quote

Performance

Frequency Band:
UHF

Frequency Range:
UHF: 403 – 470 MHz

Power Output:
Digital 3 W/2 W/1 W/0.5 W, Analog 2 W/1 W/0.5 W

Number of Channels/Groups/Zones:
256 Channels/ 16 Groups

Standard battery chemistry type:

Battery life (based on a 5-5-90 duty cycle):
Digital 3W: 12 Hours/Analog 2W: 11 Hours

Physical

Dimensions H x W x D (with standard battery)
3.58 x 2.17 x 1.24 Inches (91 x 55 x 31.5 mm)

Weight (with standard battery)
7.6 oz [215 g] with [FNB-V142LI, ATU-20, Belt Clip]

Keypad / Keys
4 Programmable Keys

Display
8 Character Alphanumeric Display

User Enviroment

Operating temperature
-22º F to +140º F (-30º C to +60º C)

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP67

Compact and Discreet

The EVX-S24 is our smallest and lightest digital radio. It is slim and easy to carry so it is ideal for hospitality, education, retail and for any market that values convenience and size.

Water Submersible and Dust Proof

The EVX-S24 meets international standard IP67 for water submersibility and is dust proof. The EVX-S24 is protected from immersion in water up to 3 feet (1 meter) for 30 minutes and offers complete protection from dust.

Conversion Made Easy with Digital to Analog Integration

eVerge radios operate in both analog and digital modes and can be used with any existing analog two-way radios.

Direct Mode

Direct Mode enables you to have two communication paths on a single frequency, effectively doubling your call capacity without the need of a repeater.

Transmit Interrupt

When seconds matter, transmit interrupt allows an operator with encode capabilities to halt or “interrupt” any current transmission, in favor of a priority message. EVX-S24 is decode only, which allows messages to be interrupted.

Better Radio Call Quality

Digital eliminates noise and static from voice transmit to only deliver the intended voice message crisply and clearly. eVerge digital radios feature the AMBE+2™ vocoder for enhanced voice quality.

Better Message Control and Privacy

Control who you call and who gets your message in digital mode. Digital radios each have a unique ID, enabling users to select who they need to call or send a text message without including others.

Site Search

Move between multiple sites seamlessly by using the Site Search functionality on your EVX-S24 radio. Manually or automatically initiate Site Search to identify the signal of the closest site with the strongest signal strength. The EVX-S24 portable will dynamically change its pre-programmed home site to the site with the strongest signal in range. Great for operations with multiple locations or buildings with multiple floors.

Motorola EVX-S24 Features

  • 256 Channels
  • 4 Programmable Keys
  • MDC1200® ANI Encode
  • FleetSync® ANI Encode
  • 2-Tone Encode/Decode
  • 5-Tone Encode/Decode
  • DTMF Encode/Decode
  • Emergency
  • Lone Worker
  • Multiple Scan Options
  • ARTS™
  • 3 Year Warranty

Brochures

Spec Sheets

Videos

EVX-S24 Portable Digital Two-Way Radio: Compact, Discreet, Lightweight

Worn on a belt, tucked away in a pocket or clipped to a lapel, the water-submersible and dust-proof EVX-S24 is designed to survive demanding conditions. It operates in both analog and digital modes, so it's ideal for use with mixed fleets. And in digital mode, enjoy noise cancellation for crisp audio and clear conversations.

Image Not Available

AAE23X501

ATU-6A: 400-430 MHz 6.5”
Image Not Available

AAE23X506

ATU-6B: 420-450 MHz 6.1”
Image Not Available

AAE23X502

ATU-6C: 440-470 MHz 6.1”
Image Not Available

AAE23X503

ATU-6D: 450-485 MHz 6”
Image Not Available

AAM23X501

ATU-20AS: Stubby 400-430 MHz 3.15”
Image Not Available

AAM23X504

ATU-20CS: Stubby 420-450 MHZ 3.15”
Image Not Available

AAM23X502

ATU-20DS: Stubby 440-470 MHz 3.15”
Image Not Available

AAM23X503

ATU-20FS: Stubby 450-480 MHz 3.15”
Image Not Available

AAM28X501

ATU-21AS: Super Stubby 400-420 MHz 2”
Image Not Available

AAM28X502

ATU-21CS: Super Stubby 420-440 MHz 2”
Image Not Available

AAM28X503

ATU-21DS: Super Stubby 440-460 MHz 2”
Image Not Available

AAM28X504

ATU-21FS: Super Stubby 460-480 MHz 2”
Image Not Available

PMNN4468

PMNN4468: 2300 mAh Li-Ion Battery
Image Not Available

AAM22X501

LCC-S24: Leather Case, Belt Loop
Image Not Available

AAM22X502

LCC-S24S: Leather Case, Swivel Belt Loop
Image Not Available

AAM18X501

Clip-27: Belt Clip
Image Not Available

PA-57: Power Adapter
Image Not Available

AAM19X501

CD-65: Standard Single Unit Charging Cradle
Image Not Available

AAM20X501

CD-66: Enhanced Single Unit Charging Cradle
Image Not Available

VAC-6066: Multi Unit Charger
Image Not Available

AAM21X501

MH-89A4B: Earpiece Microphone
Image Not Available

AAM26X501

VH-190: VOX Lightweight Headset, Behind-the-Head
Image Not Available

AAM24X501

MH-90A4B: Compact Speaker Microphone
Image Not Available

AAE46X509

MH-66F4B: IP57 Submersible Speaker Microphone

The Motorola EVX-S24 is available in the following UHF models.

  • AC146U502-MOT-NA 403-470 MHz, 256 Channels, 1-3 Watt - BLACK
  • AC146U512-MOT-NA 403-470 MHz, 256 Channels, 1-3 Watt - YELLOW
