 | PMAF4024 900MHZ (902-928MHZ) |

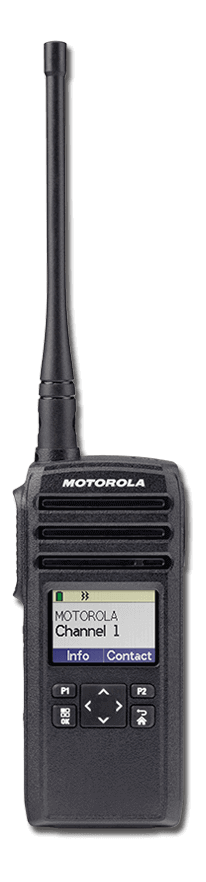

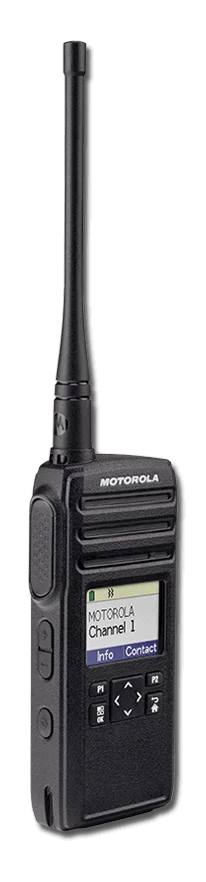

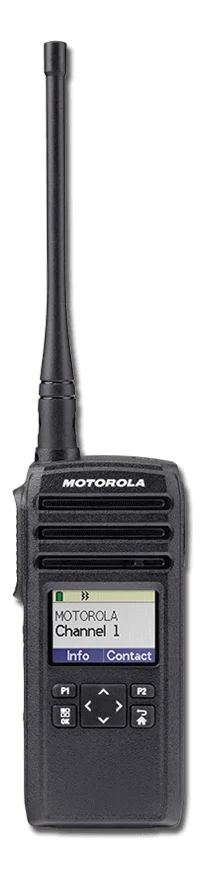

Motorola DTR700
Motorola
DTR700
Motorola's DTR Series radios are now more reliable than ever - enabling interference-free, private communications to help your team stay focused while keeping communications private.
With its slim, rugged design the DTR700 digital two-way radio is equipped with 50 channel capacity. It is IP54 rated and operates at 900 MHz. A full-graphic color display and intuitive navigation menu help you quickly locate all radio features. The DTR700 offers flexible communication options, including Digital One-to-One Calling and Digital One-to-Many Calling. The DTR700 also provides great coverage, long battery life and digital audio quality that is loud and clear audio wherever you are.
Performance
Frequency Band:
900 MHz
Frequency Range:
900 MHz ISM FHSS
Power Output:
1 W
Number of Channels/Groups/Zones:
50 Channels
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
16.5 hrs
Physical
Dimensions H x W x D (with standard battery)
5.06” H x 2.2” W x 1.06” D
(128.5mm H x 56mm W x 27mm D)
Weight (with standard battery)
7.87oz. (223 g)
Keypad / Keys
Limited
Display
Full, Color
User Enviroment
Operating temperature
-30C to +60C
Mil spec
810 D, 810 C, 810 E, 810 F, 810 G
IP Standards
IP54
- 50 Digital Channels
- License-free Communication on 900 MHz Digital ISM Band
- Interference Free, Private Communications
- Vibrant Color Display
- Long battery life up to 16.5 hours *
- Slim, Rugged Design
- Prominent Functional Keys
- Flexible Call Options
- Wide Area Coverage
- Loud and Clear Audio
- License Free, Hassle Free
* Typical battery life, 5/5/90 profile at maximum transmitter power. Actual observed runtimes may vary.
Spec Sheets
 | PMNN4578 Li-ion 2500 mAh, 3.7v Li-ion 2500 mAh, 3.7v |
 | PMLN7939 Swivel Clip Holster |
 | PMPN4469 Single Unit Charger |
 | PMPN4465 6-Pocket Multi Unit Charger |
 | HKLN4604 Swivel Earpiece with in-line microphone and push-to-talk |
 | HKLN4599 Earpiece with in-line microphone and push-to-talk |
 | HKLN4601 Surveillance Kit with in-line microphone and push-to-talk |
[an error occurred while processing this directive]
[an error occurred while processing this directive]
The Motorola DTR700 is available in the following models.
- DTS150NBDLAA 900MHz, Limited Keypad
