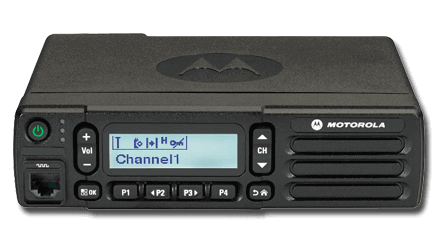

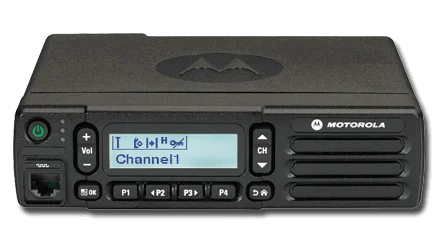

Motorola CM300d

  • Motorola Solutions CM300d
Motorola

CM Series

The MOTOTRBO CM Series mobile radio is a reliable, cost-efficient solution to keep your team in contact so they can communicate, coordinate and collaborate for maximum efficiency and safety. The CM Series is designed for the everyday driver, so your workers can connect without distraction, whether they're delivering cargo, dispatching trucks, or driving a school bus. The CM Series is easy to use and delivers clear communication for maximum efficiency of your operation.

The CM Series radios include:
CM200d
CM300d


Request a Quote

Performance

Frequency Band:
VHF, UHF

Frequency Range:
VHF 136-174 MHz UHF 403-470 MHz

Power Output:
1-25W, 25-45W (VHF); 1-25W, 25-40W (UHF)

Channel spacing:
12.5, 25

Physical

Dimensions H x W x D
1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)

Weight
2.9 lbs (1.3 kg)

Display
CM200d: Numeric Display
CM300d: Alphanumeric Display

User Enviroment

Operating temperature
-30°C / +60°C

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP54

  • Analog/Digital:
    Get all the benefits of digital, including better voice quality, better range and better battery life, but retain compatibility with your existing radio fleet. With analog and digital capability, you have the freedom to migrate to the latest technology at your own pace.
  • Analog only:
    Purchase analog capability now and transition to digital capability when you're ready. All you will need is a simple software upgrade.
  • Transmit Interrupt Capability (decode only):
    Enables a supervisor to interrupt a CM Series user to deliver critical communication exactly when and where it's needed.
  • Compatible with Radio Management Suite:
    Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.
  • Dual Capacity Direct Mode:
    Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel, without the need for a repeater.
  • IP54 Rated:
    Dustproof and splashproof, so you can work with confidence in challenging environments.

Brochures

Spec Sheets

VHF Antennas

Motorola HAD4006

HAD4006

VHF 1/4 Wave Antenna, 136-144 MHz
Motorola HAD4007

HAD4007

VHF 1/4 Wave Antenna, 144-150.8 MHz
Motorola HAD4008

HAD4008

VHF 1/4 Wave Antenna, 150.8-162 MHz
Motorola HAD4009

HAD4009

VHF 1/4 Wave Antenna, 162-174 MHz
Motorola HAD4022

HAD4022

VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz

UHF Antennas

Motorola HAE4002

HAE4002

UHF 403-430 MHz, 1/4 Wave Roof Mount, Mini-U
Motorola HAE4003

HAE4003

UHF 1/4 Wave Antenna, 450-470 MHz
Motorola HAE4010

HAE4010

UHF 406-420 MHz, 3.5 dB Gain, Roof Mount, Mini-U

Image Not Available

HAE4011

UHF 450-470 MHz, 3.5 dB Gain, Roof Mount, Mini-U
Image Not Available

HAE6022

UHF, 403-527 MHz, 2 dB Gain, Through-hole Mount, Mini-U
Image Not Available

RAE4004ARB

UHF 445-470 MHz, 5 dB Gain, Roof Mount, Mini-U (with base)
Image Not Available

RLN6466

Low Profile Trunnion Kit
Image Not Available

RLN6467

High Profile Trunnion Kit
Image Not Available

RLN6468

Key Lock Trunnion Kit
Image Not Available

FTN6083

In-Dash Mounting Kit - DIN
Image Not Available

HKN4137

Power Cable to Battery - 10 foot, 15 amp 14 AWG
Motorola HKN4191

HKN4191

Power Cable to Battery - 10 foot, 20 amp 12 AWG
Motorola HKN4192

HKN4192

Power Cable to Battery - 20 foot, 20 amp 10 AWG
Motorola HKN9327

HKN9327

Ignition Sense Cable
Image Not Available

3012045001

Trunnion Mounting Screws

Cables & Connectors

Image Not Available

PMKN4147

Mobile Front Programming Cable
Image Not Available

PMKN4151

Mobile Rear Accessory Connector Universal Cable
Image Not Available

GMBN1021

Rear Accessory Connector Seal with Connector and Pins
Image Not Available

HLN9457

16 Pin Accessory Connector Kit
Image Not Available

PMLN5620

Connector Extender, 20 pieces
Motorola PMMN4090

PMMN4090

Standard Compact Microphone
Motorola PMMN4091

PMMN4091

Heavy-Duty Microphone
Motorola PMMN4089

PMMN4089

Keypad Microphone
Image Not Available

PMLN6481

Telephone Style Handset
Motorola GMMN4065

GMMN4065

Visor Microphone
Image Not Available

PMMN4098

Desktop Microphone

Mobile Microphones Accessories

Motorola HLN9073

HLN9073

Microphone Hang-Up Clip (requires installation)
Motorola HLN9414

HLN9414

Universal Microphone Hang-Up Clip (no installation require)

Vehicle Remote PTT Solutions

Motorola RLN4836

RLN4836

Emergency Footswitch can be used with a visor microphone GMMN4065
Motorola RLN4856

RLN4856

Remote Mount Footswitch Push-to-Talk to interface with your visor microphone GMN4065
Motorola RLN4857

RLN4857

Remote Mount Pushbutton Push-to-Talk to interface with your visor microphone GMN4065

The Motorola CM300d is available in the following models.

Analog Models

  • AAM01JNH9JC1AN 136-174 MHz, 25 Watts, 99 Channels Alphanumeric Display
  • AAM01JQH9JC1AN 136-174 MHz, 45 Watts, 99 Channels Alphanumeric Display
  • AAM01QNH9JC1AN 403-470 MHz, 25 Watts, 99 Channels Alphanumeric Display
  • AAM01QPH9JC1AN 403-470 MHz, 40 Watts, 99 Channels Alphanumeric Display

Digital Models

  • AAM01JNH9JA1AN 136-174 MHz, 25 Watts, 99 Channels Alphanumeric Display
  • AAM01JQH9JA1AN 136-174 MHz, 45 Watts, 99 Channels Alphanumeric Display
  • AAM01QNH9JA1AN 403-470 MHz, 25 Watts, 99 Channels Alphanumeric Display
  • AAM01QPH9JA1AN 403-470 MHz, 40 Watts, 99 Channels Alphanumeric Display
