Motorola CLP1010e

  • Motorola Solutions CLP1010e
Motorola

CLP1010e

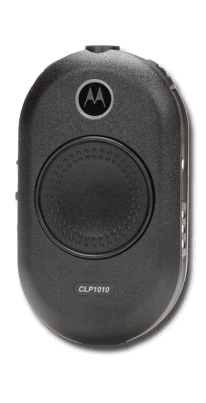

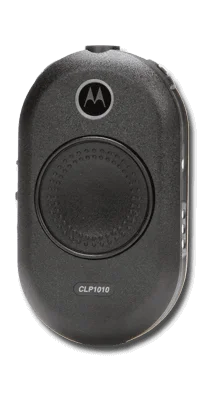

The CLP1010e one-channel model is small, lightweight and easy to use with simple one-button push-to-talk (PTT) operation for communication in an instant. Quickly check essential radio information at a glance with the smart status glow ring, and reduce missed messages with louder and clearer audio for precise communication between users. All this performance is protected by a rugged radio housing and long-lasting battery. Radio weight and dimensions are calculated with the standard battery.


Request a Quote

Performance

Frequency Band:
UHF

Frequency Range:
450 - 470 MHz

Power Output:
1W

Number of Channels/Groups/Zones:
1

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
18 Hrs

Channel spacing:
12.5 kHz/25.0 kHz

Physical

Dimensions H x W x D (with standard battery)
3.55 x 2.0 x 0.98 inches (90 x 51 x 21 mm)

Weight (with standard battery)
3.35 oz (95g)

User Enviroment

Operating temperature
-30ºC to +60ºC

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP54

STYLISH, COMPACT AND DURABLE DESIGN
A sleek design, small enough to fit in the palm of your hand. IP54 and Military Standard 810H rated to survive dust, water, vibration, shock and temperature extremes.

LARGE PTT BUTTON
Centrally located for easy use without the need to look at the radio.

SMART STATUS GLOW RING
The glow ring around the PTT button indicates active channel, radio transmit & receive, scan, volume level and battery level, making radio status checks easy and intuitive.

UP TO 18 HOUR BATTERY LIFE
Power through a full shift with up to 18 hours of battery life from a full charge.

AUDIO, CARRY, AND CHARGING ACCESSORIES
Compliment your workstyle with a variety of accessories exclusively designed for the CLP Series.

ESCALATE CALL
Initiate an important call or alert users on another channel to immediately communicate a message in high-risk situations, keeping your teams and assets safer when an incident occurs.

VOICE GUIDED NAVIGATION
Help your staff to easily learn the system with voice guided menus. The CLP allows you to use pre-defined voice prompts for your channels or add custom voice prompts to help your staff identify the channel they should be using.

KEY FEATURES

  • VOX hands free
  • 6 call tones
  • Mute
  • 15 volume levels
  • Scan/monitor
  • Antimicrobial housing
  • Customer programming software

Brochures and Specifications

Image Not Available

HKNN4013A

1800 mAh Li Ion Hi Cap Battery
Image Not Available

PMLN8064

Magnetic Case (Attach the radio anywhere on your clothing by using the powerful magnet placed inside and the radio placed outside)
Image Not Available

PMLN8065

Replacement Swivel Belt Holster
Image Not Available

HKPN4007

Multi-Unit Charger
Image Not Available

HKPN4008

Single-Unit Charger
Image Not Available

PMLN8077

Swivel Earpiece with Inline PTT & Microphone

(Comfortable, higher quality audio. Optional removable silicone ear tips can be used to improve noise isolation and hygiene between shift users.)
Image Not Available

PMLN8125

Swivel Earpiece with Inline PTT Microphone (Short Cord)
Image Not Available

PMLN8068

Replacement Silicone Ear tip (Small, 5-Pack)
Image Not Available

PMLN8069

Replacement Silicone Ear tip (Medium, 5-Pack)
Image Not Available

PMLN8070

Replacement Silicone Ear tip (Large, 5-Pack)
Image Not Available

HKLN4508

Charging cradle adapter

Image Not Available

HKLN4509A

Bluetooth Accessory Charging Cradle & Power Supply

Image Not Available

HKLN4512A

Bluetooth Accessory Pod

Image Not Available

HKLN4513A

Bluetooth Accessory Swivel Earpiece
Image Not Available

HKLN4514

Flexible-fit swivel earpiece with boom microphone

The Motorola CPL1010e is available in the following models.

  • CLU1010BHLCA CLP1010E 1W UHF 1 Channel (BRUS)
