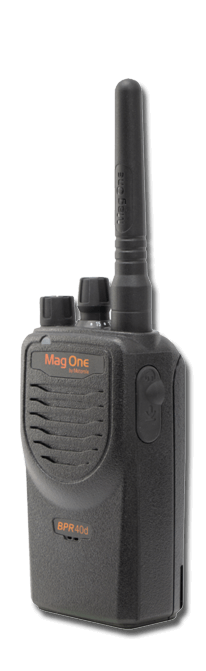

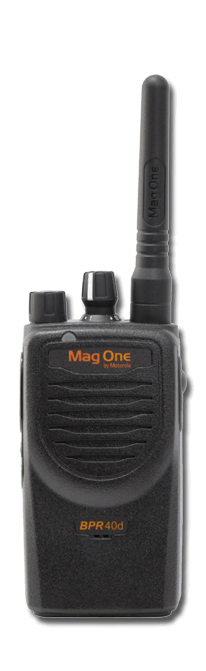

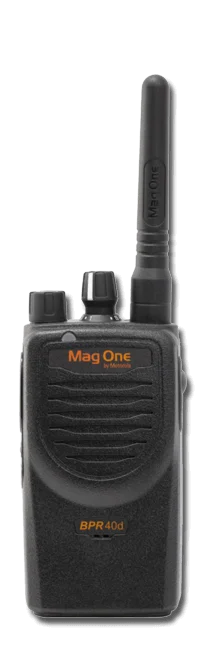

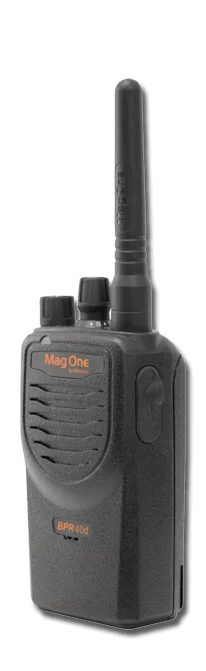

Motorola BPR40d

  • Motorola Solutions BPR40d
  • Motorola Solutions BPR40d
Motorola

BPR40

Lightweight, powerful and affordable, with DMR II support.

The BPR40d radio supports analog communications for simple, familiar push-to-talk voice. It also supports the Digital Mobile Radio (DMR II) communications standard, giving you more range and clear voice connections, even at the edge of your coverage. Long battery life means continued communication that lasts an entire shift. Rugged and IP54 water-resistant for worry-free operation, while the radio's two-year warranty brings peace of mind.


Request a Quote

Performance

Frequency Range:
UHF: 403 - 470 MHz

Power Output:
1W/4W

Number of Channels/Zones:
16 Channels

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
Digital: up to 15 hours
Analog: up to 12 hours

Channel spacing:
12.5/25 kHz

Physical

Dimensions H x W x D (with standard battery)
4.2 x 2.3 x 1.5 in.

Weight (with standard battery)
10.9 oz

Keypad / Keys
No Keypad

Display
No Display

User Enviroment

Operating temperature
-30° to +60° C (Radio Only)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards
IP54

Little radio. Big features.

  • Analog and digital (DMR II) operation
  • Up to 15 hours battery life
  • Adjustable power level (1W or 4W)
  • Large, textured push-to-talk button
  • Voice confirmation of button and knob actions
  • Two programmable buttons
  • Rugged, die-cast chassis
  • Water and dust resistant (IP54)

Advanced digital capabilities

Digital Mobile Radio (DMR II)
Take advantage of advanced digital features, clear voice communications and greater coverage. Interoperate with other DMR radios.

All Call / Group Call / Private Call
Communication without distraction. Reach everyone in your team, select groups or individuals.

Remote Monitor
Remotely activate the radio’s microphone and transmitter and hear its audio.

Radio Enable / Disable
Remotely disable a lost or stolen BPR40d radio. Once recovered, it can be remotely enabled again.

Mixed-Mode Channel Scan
Monitor digital and analog signals simultaneously

Spec Sheets

Antenna [+]

Motorola PMAE4020

PMAE4020AR

Mag One UHF 450-470 MHz Stubby Antenna

Motorola PMAE4104

PMAE4104

Antenna

Batteries [+]

Motorola PMNN4075

PMNN4075

Li-ion High Capacity 1500 mAh Battery

7.2V, 1500 mAh, Li-ion, 12month warranty

Motorola Mag One high capacity battery for the BPR40d. 25% more capacity than the standard battery and it uses li-ion chemistry to give you 20% more talk time with less weight. Belt clip not included.

Carry Accessories [+]

Motorola PMLN4743

PMLN4743

Mag One 2" Spring Belt Clip

Chargers [+]

Image Not Available

25009297001

Power Adapter

Earpieces [+]

Motorola PMLN6531

PMLN6531

Ear Receiver with In-Line Mic/PTT/VOX Switch (Mag One)

Headsets [+]

Motorola PMLN6542

PMLN6542

Mag One Ultra-Lite Headset, behind-the-head, adjustable with boom microphone and in-line push-to-talk

Remote Speaker Mics [+]

Motorola PMMN4092

PMMN4092

Remote Speaker Microphone - Mag One

The Motorola BPR40d is available in the following models.

UHF

  • AAH85EDJ8AD3AN 403-470 MHz, 4W (Ships 1W), 16 Channels
