KNG2

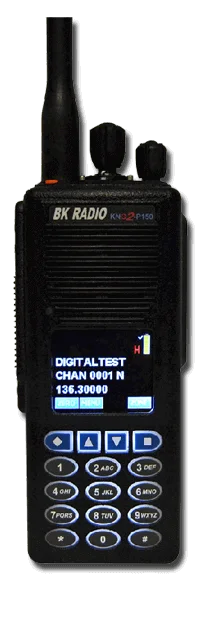

    BK Technologies KNG2 Portable
BK Technologies

KNG2

The KNG2 P25 Portable Radio offers exceptional performance in a lightweight form. BK Technologies is honored to serve our Everyday Heroes with a device that brings DEPENDABILITY when every moment counts.


Request a Quote

Performance

Frequency band:
VHF, UHF, 700/800 MHz

Frequency range:
VHF: 136-174 MHz
UHF: 380-470, 440-520 MHz
700/800: 763-870 Mhz

Power Output:
VHF: 6 W
UHF: 5 W
700/800: 3 W

Standard battery chemistry type:
Li-Ion

Number of Channels/Groups/Zones:
5000 Channels

  • Advanced System Key
  • Enhanced Noise Cancellation
  • Loud, Crisp Audio
  • P25 Trunking Option
  • TDMA Phase II
  • IP67/IP68 Water And Dust Protection
  • Internal GPS And Bluetooth Hardware
  • USB PC Programmable
  • Nist-Certified AES, Fips 140-2 Level 2, DES-OFB/CFB/XL/ADP
  • Ruggedized Design With Large, Enhanced, Gorilla Glass Color Display
  • Mil-Std 810 C/D/E/F/G
  • Radio Authentication (LLA)

Brochures

Antenna [+]

No Image Available

KAA0810G2

VHF Antenna, SMA (136-174 MHz) 38 MHz

Full Band Heavy Duty Length: 7.25”
For use with KNG2-P150, KNG-P150, KNG-P150S, P150CMD (Tier 3 & Tier 2)
No Image Available

KAA0811C

VHF Antenna, SMA (164-174 MHz) Stubby 4.3”

For use with KNG2-P150, KNG-P150, KNG-P150S, P150CMD (Tier 3 & Tier 2)
No Image Available

KAA0813

VHF 148-174 MHz Antenna, SMA Heavy Duty Full-Flex/Full-Whip 17”

KNG2-P150, KNG2-P150CMD, KNG-P150, KNG-P150S, and P150CMD Both Tier 3 (Keypad) & Tier 2 (No Keypad) radio models
No Image Available

KAA0815

UHF Antenna, SMA (380-470 MHz) 6.25” For use with KNG2-P400, KNG-P400/P400S (Tier 3 & Tier 2)
No Image Available

KAA0816

UHF Antenna, SMA (450-520 MHz) 6.25”

For use with KNG2-P500, KNG-P500 (Tier 3 & Tier 2)
No Image Available

KAA0817

UHF antenna for KNG-P400 with frequency range from 380 to 420 MHz
No Image Available

KAA0818

VHF Antenna

SMA Operating BW: 136-174 MHz Optimal BW: 160-174 MHz Heavy Duty Semi-Whip Length: 10.75”
For use with KNG2-P150, KNG-P150, KNG-P150S, P150CMD (Tier 3 & Tier 2)
No Image Available

KAA0825

800, SMA (764-870 MHz) Antenna
No Image Available

KAA0833

760-870 MHz Antenna, 1/4 Wave Stubby
No Image Available

MAGMT-SMA

Magnetic Mount Base w/17 ft. Cable & SMA male connector

Batteries [+]

No Image Available

KAA0101

Li-ion Battery 3600 mAH
No Image Available

KAA0101IS

Li-Ion Battery 3600 mAH - Intrinsically Safe.
No Image Available

KAA0103E

Li-Ion Smart “Intelligent” Battery 2300 mAH.
Compatible with KNG Standard and Smart Chargers.
Same size as KAA0100
No Image Available

KAA0111

Battery Eliminator for KNG2 & KNG-P Portables
No Image Available

KAA0120

AA Clam Shell Battery Case Orange

Carry Accessories [+]

No Image Available

KAA0203-Clip

Belt Clip, KAA0203, w/4 Screw, Benelec.
No Image Available

KAA0400

Belt Clip Included with each KNG-P/KNG2
No Image Available

KAA0402

Belt Loop, 2.5”, w/Snap Replacement Belt loop for KAA0422 Leather Case
No Image Available

KAA0413

Leather Shoulder Strap with clips (adjustable)
For use with KAA0415 or KAA0415CF Leather Cases
No Image Available

KAA0413T

Leather Tether with clips (highlighted in yellow)
For use with KAA0415 or KAA0415CF Leather Cases

NOTE: Leather Case and Shoulder Strap not included
No Image Available

KAA0415

Case Leather, Flap Cover
w/snap button, Thru-Belt Loop, No keypad access, Rear D-Rings (2), Black
(for use with KAA0100, KAA0101 batteries or KAA0120 clamshell)
No Image Available

KAA0415CF

Case Leather, Open front
for keypad access, No Flap Cover, Thru-Belt Loop, Rear D-Rings (2), Black
(for use with KAA0100, KAA0101 batteries or KAA0120 clamshell)
No Image Available

KAA0415CF2

Case Leather, Open front
for keypad access, No Flap Cover, Thru-Belt Loop, Rear D-Rings (2), Black
(for use with KAA0100, KAA0101 batteries or KAA0120 clamshell)
No Image Available

KAA0421

Leather Case with detachable swivel Belt Loop
No Image Available

KAA0422E

Large Leather Case
with detachable swivel Belt Loop
(for KAA0100, KAA0101 batteries or KAA0120 clamshell) Color: Black
No Image Available

KAA0447

Chest Carrying Pack Color: Orange
No Image Available

KAA0447A

Chest Carrying Pack Color: Black
No Image Available

KAA0448

Chest Carrying Pack
Accommodates GPH, DPHX, and KNG-P/KNG2 Series radios.
Slim line design Lightweight Velcro fasteners Color: Black
No Image Available

KAA0450T

Case Nylon Holster w/ Belt Loop Color: Tan
For KAA0100, KAA0101 Li-Ion batteries and KAA0120 Clamshell
No Image Available

KAA0451B

Case Nylon Full Case W/ Belt Clip Color: Black
For KAA0100, KAA0101 Li-Ion batteries and KAA0120 Clamshell
No Image Available

KAA0455

KNG Carrying Case Nylon Color: Camouflage
No Image Available

LAA0413

Leather Shoulder Strap
No Image Available

RDRCC

12 Cavity Carrying Case Color: Black

Chargers

No Image Available

KAA0300P

Single Unit Rapid Rate Desktop Charger with charging cups for KNG-P.
For use with KAA0100, KAA0103, KAA0101,or KAA0101IS Li-Ion Batteries
No Image Available

KAA0300P-PS

A wall adapter power supply for the KAA0300P
No Image Available

KAA0301P

6-Bay Rapid Rate Desktop Charger with charging cups for KNG-P.
For use with KAA0100, KAA0103, KAA0101,or KAA0101IS Li-Ion Batteries
No Image Available

KAA0303-1

Single Bay Smart Charger.
Multi-chemistry capable: NiCad, NiMH, Li-Ion and Li-Po Adaptive reconditioning capability.

Display Showing Battery’s Charge or Life Condition Wide Range Power Input: AC Input (110 –240V AC) or DC Input (14 – 24v DC) Charges both Smart & Standard KNG Batteries
No Image Available

KAA0303-6

6-Bay Smart Charger.

Multi-chemistry capable: NiCad, NiMH, Li-Ion and Li-Po Adaptive Reconditioning Capability Display Showing Battery’s Charge or Life Condition Wide Range Power Input: AC Input (110 –240V AC) or DC input (14 – 24v DC) Charges both Smart & Standard KNG Batteries
No Image Available

KAA0303-CUP

Charging Cup, KAA0303-X charger for KNG2
No Image Available

KAA0355P

Vehicular Charger (Standard Duty)
(includes KAA0602P Hard-wire Installation kit & Vehicular Charging Adapter)
No Image Available

KAA0355P-VPA

Adaptor, Vehicle Power, TWC1M- VPA
No Image Available

KAA0601P

Mounting Bracket, Vehicular,
for KAA0301P
No Image Available

KAA0602P

Cable Kit, Fused, 10ft hard-wire for KAA0301P

Microphones and Audio Accessories [+]

No Image Available

KAA0044

Kit, Side Port Cover and Screw, KNG-P/KNG2
No Image Available

KAA0203EA

Speaker/ Mic/ w/Emergency Button/ Ant port
No Image Available

KAA0203EA-KIT

Speaker Kit

Includes KAA0203EA, KAA0811C, KAA0221-203

No Image Available

KAA0204-35

Heavy Duty, IP68 Submersible KNG-P/KNG2 Speaker Microphone w/Standard 3.5mm audio jack.
Does not have a Hi/Lo Volume Control or Red Emergency button.
No Image Available

KAA0204-CLIP

Assembly, Lapel Clip, KAA0204 Series
No Image Available

KAA0204-E-CBL

Cable, Replacement, KAA0204-E,
No Image Available

KAA0204-E35

Heavy Duty, IP68 Submersible KNG-P/KNG2 Speaker Microphone w/Standard 3.5mm audio jack.
Does not have a Hi/Lo Volume Control. Includes Red Emergency button
No Image Available

KAA0204-VCE35

Heavy Duty, IP68 Submersible KNG-P/KNG2 Speaker Microphone w/Standard 3.5mm audio jack.
Includes Hi/Lo Volume Control & Red Emergency button.
No Image Available

KAA0206

IP68 Submersible Speaker Microphone (IP68: immersion rated to one meter of water for 31 minutes).
Functions for more than five minutes at 500°F (260°C). New clip design with increased clamping force and metal loop.
Removable grill with replaceable debris screen. Large PTT for use with gloves. Emergency Button. For KNG-P/KNG2 Series portable radios
No Image Available

KAA0210EH

Ear Hugger, comes with a 3.5mm audio plug, flexible acoustic tubing and silicon mushroom bud, compatible with KAA0210NC
No Image Available

KAA0210NC

Speaker Microphone, Noise Cancelling, IP67 Submersible w/standard 3.5mm audio jack, High/Low Audio switch, and Emergency Button.
No Image Available

KAA0214

Side Connector KNG to Hirose
No Image Available

KAA0220

Earphone Listen Only 2.5 mm Black Loop
No Image Available

KAA0220EH

Earphone Listen Only 2.5 mm Black Loop (Ear Hugger Style)
No Image Available

KAA0221

Earphone Listen Only 3.5 mm Black Ear Loop
No Image Available

KAA0221-203

Listen Only Earphone w/Ear Hugger style earphone (3.5m threaded audio plug)
No Image Available

KAA0221EH

Earphone Listen Only 3.5 mm Black Loop (Ear Hugger Style)
No Image Available

KAA0221OTE

Listen Only Earphone w/black ear muff (w/3.5mm right angle plug)
No Image Available

KAA0222EH

Listen Only Earphone w/Ear Hugger style earphone (w/3.5mm right angle plug)
No Image Available

KAA0222OE

Earphone Kit, Over Ear, KNG-P teem , 0783B2
No Image Available

KAA0223

Heavy Duty Noise Canceling Earphone with Boom Microphone (Over the Head)
No Image Available

KAA0225

Two Wire Surveillance Microphone The PPT button and mic are both part of a single unit (clip on lapel style)
No Image Available

KAA0226

Three Wire Surveillance Microphone (Includes KAA0226A and KAA0226M earphone).
No Image Available

KAA0226A

Replacement Acoustic Tube With Clear Ear Tip for KAA0225 & KAA0226
No Image Available

KAA0226AT-KIT

Acoustic tube & quick disconnect Kit
No Image Available

KAA0226EB

Ear Bud, Standard Kit, 07821B
No Image Available

KAA0226EL

Replacement Large Flexible Ear Insert for KAA0225 & KAA0226
No Image Available

KAA0226ES

Replacement Small Flexible Ear Insert for KAA0225 & KAA0226
No Image Available

KAA0226ET

Replacement Standard Flexible Ear Insert for KAA0225 & KAA0226
No Image Available

KAA0226F

Flat PPT Button With 2.5mm plug
No Image Available

KAA0226OEI

Acoustic Tube with Ear Insert
No Image Available

KAA0226R

Ring PPT Button With 2.5mm plug
No Image Available

KAA0228

Heavy Duty Noise Canceling Earphone with Boom Microphone (Behind the Head)
No Image Available

KAA0228-HRC

Headset Replacement Cable, KAA0228, KNG/2-P Series, Otto
No Image Available

KAA0235

Adaptor, 2.5 to 3.5mm audio jack

Installation & Cables [+]

No Image Available

KAA0626

Adapter, Interface, KNG Portable to Sig Headset.
No Image Available

KAA0601P

Mounting Bracket, Vehicular, for KAA0301P
No Image Available

KAA0587A

Key Loader interface cable assembly for the KNG-P, KNG2, KNG-M, KNG-TMR, & KNG-B for Motorola KVL3000/3000+/4000 Keyloaders
No Image Available

KAA0602P

Cable Kit, Fused, 10ft hard-wire for KAA0301P
No Image Available

KAA0648

Replacement coiled, molded cable for KAA0200 and KNG2
No Image Available

KAA0649

Cable assembly, straight, unterminated on one end. Includes the KNG-P side port interface adapter (8.3' in length)
No Image Available

KAA0700

Cloning Cable KNG-P to KNG2-P
No Image Available

KAA0700-8

Cloning Cable KNG-P, 8 ft
No Image Available

KAA0701-8

Cable Assy, Cloning, and Legacy, KNG, 8ft
No Image Available

KAA0705

Authentication key loader cable for KNG2-P and KNG-M
No Image Available

KAA0710

KNG-P/KNG2/KNG-M/KNG-B/KNG-TMR Programming Cable

Miscellanous [+]

No Image Available

KAA0040

Kit, Knobs, Portable, Channel Selector & Volume, KNG-P/KNG2
No Image Available

KAA0043

Kit, Battery Latch & Spring, replacement kit for batteries, KNG-P/KNG2
No Image Available

KAA0608

Side Port interface Test/Service Adapter for use with IFR/Other Radio Test sets for KNG-P/KNG2 Portables
No Image Available

KAA0608A

Side Port interface Test/Service Adapter for use with the Aeroflex (Cobham) 3920 Digital Radio Test Set for KNG-P/KNG2 Portables
  • KNG2-P150:
    136-174 MHz, 5000 channels, 6 Watt, P25 Digital/Analog Portable Blue tooth/GPS capable
  • KNG2-P150CMD:
    136-174 MHz, 5000 channels, 6 Watt, P25 Digital/Analog Portable Blue tooth/GPS capable Specialized Command Groups
  • KNG2-P150T2:
    136-174 MHz, 5000 channels, 6 Watt, P25 Digital/Analog Portable Blue tooth/GPS capable without Keypad
  • KNG2-P400:
    380-470 MHz, 5000 channels, 5 Watt P25 Digital/Analog Portable Blue tooth/GPS capable
  • KNG2-P400CMD:
    380-470 MHz, 5000 channels, 5 Watt, P25 Digital/Analog Portable Blue tooth/GPS capable Specialized Command Groups
  • KNG2-P400T2:
    380-470 MHz, 5000 channels, 5 Watt, P25 Digital/Analog Portable Blue tooth/GPS capable without Keypad
  • KNG2-P500:
    440-520 MHz, 5000 channels, 5 Watt P25 Digital/Analog Portable Blue tooth/GPS capable
  • KNG2-P800:
    763-870 MHz, 5000 channels, 3 Watt P25 Digital/Analog Portable Blue tooth/GPS capable
  • KNG2-P800T2:
    763-870 MHz, 5000 channels, 3 Watt, P25 Digital/Analog Portable Blue tooth/GPS capable without Keypad
