KNG
BK Technologies
KNG

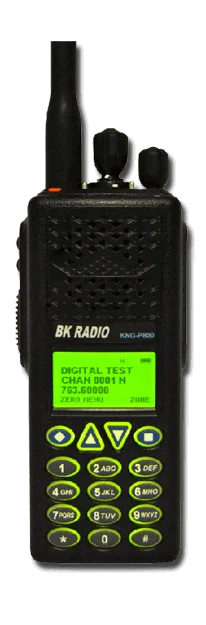

The KNG2 P25 Portable Radio offers exceptional performance in a lightweight form. BK Technologies is honored to serve our Everyday Heroes with a device that brings DEPENDABILITY when every moment counts.
Performance
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174 MHz
UHF: 380-470, 440-520 MHz
700/800: 763-870 Mhz
Power Output:
VHF: 6 W
UHF: 5 W
700/800: 3 W
Standard battery chemistry type:
Li-Ion
Number of Channels/Groups/Zones:
5000 Channels
- P25 Trunking Option
- TDMA Phase II Compatible
- IP67/IP68 Water And Dust Protection
- USB PC Programmable
- Nist-Certified AES, FIPS 140-2 Level 1, DES-OFB/CFB/XL
- Mil-Std 810 C/D/E/F/G
- Cloning To KNG & Legacy Series
- Advanced System Key
- Radio Authentication (LLA)
Brochures
 | KAA0810G2 VHF Antenna, SMA (136-174 MHz) 38 MHz Full Band Heavy Duty Length: 7.25” |
| KAA0811C VHF Antenna, SMA (164-174 MHz) Stubby 4.3” For use with KNG2-P150, KNG-P150, KNG-P150S, P150CMD (Tier 3 & Tier 2) |
| KAA0813 VHF 148-174 MHz Antenna, SMA Heavy Duty Full-Flex/Full-Whip 17” KNG2-P150, KNG2-P150CMD, KNG-P150, KNG-P150S, and P150CMD Both Tier 3 (Keypad) & Tier 2 (No Keypad) radio models |
| KAA0815 UHF Antenna, SMA (380-470 MHz) 6.25” For use with KNG2-P400, KNG-P400/P400S (Tier 3 & Tier 2) |
| KAA0816 UHF Antenna, SMA (450-520 MHz) 6.25” For use with KNG2-P500, KNG-P500 (Tier 3 & Tier 2) |
| KAA0817 UHF antenna for KNG-P400 with frequency range from 380 to 420 MHz |
| KAA0818 VHF Antenna SMA Operating BW: 136-174 MHz Optimal BW: 160-174 MHz Heavy Duty Semi-Whip Length: 10.75” |
| KAA0825 800, SMA (764-870 MHz) Antenna |
| KAA0833 760-870 MHz Antenna, 1/4 Wave Stubby |
| MAGMT-SMA Magnetic Mount Base w/17 ft. Cable & SMA male connector |
| KAA0101 Li-ion Battery 3600 mAH |
| KAA0101IS Li-Ion Battery 3600 mAH - Intrinsically Safe. |
| KAA0103E Li-Ion Smart “Intelligent” Battery 2300 mAH. |
| KAA0111 Battery Eliminator for KNG2 & KNG-P Portables |
| KAA0120 AA Clam Shell Battery Case Orange |
| KAA0300P Single Unit Rapid Rate Desktop Charger with charging cups for KNG-P. |
| KAA0300P-PS A wall adapter power supply for the KAA0300P |
| KAA0301P 6-Bay Rapid Rate Desktop Charger with charging cups for KNG-P. |
| KAA0303-1 Single Bay Smart Charger. Display Showing Battery’s Charge or Life Condition Wide Range Power Input: AC Input (110 –240V AC) or DC Input (14 – 24v DC) Charges both Smart & Standard KNG Batteries |
| KAA0303-6 6-Bay Smart Charger. Multi-chemistry capable: NiCad, NiMH, Li-Ion and Li-Po Adaptive Reconditioning Capability Display Showing Battery’s Charge or Life Condition Wide Range Power Input: AC Input (110 –240V AC) or DC input (14 – 24v DC) Charges both Smart & Standard KNG Batteries |
| KAA0303-CUP Charging Cup, KAA0303-X charger for KNG2 |
| KAA0355P Vehicular Charger (Standard Duty) |
| KAA0355P-VPA Adaptor, Vehicle Power, TWC1M- VPA |
| KAA0601P Mounting Bracket, Vehicular, |
| KAA0602P Cable Kit, Fused, 10ft hard-wire for KAA0301P |
| KAA0203-Clip Belt Clip, KAA0203, w/4 Screw, Benelec. |
| KAA0400 Belt Clip Included with each KNG-P/KNG2 |
| KAA0402 Belt Loop, 2.5”, w/Snap Replacement Belt loop for KAA0422 Leather Case |
| KAA0413 Leather Shoulder Strap with clips (adjustable) |
| KAA0413T Leather Tether with clips (highlighted in yellow) NOTE: Leather Case and Shoulder Strap not included |
| KAA0415 Case Leather, Flap Cover |
| KAA0415CF Case Leather, Open front |
| KAA0415CF2 Case Leather, Open front |
| KAA0421 Leather Case with detachable swivel Belt Loop |
| KAA0422E Large Leather Case |
| KAA0447 Chest Carrying Pack Color: Orange |
| KAA0447A Chest Carrying Pack Color: Black |
| KAA0448 Chest Carrying Pack |
| KAA0450T Case Nylon Holster w/ Belt Loop Color: Tan |
| KAA0451B Case Nylon Full Case W/ Belt Clip Color: Black |
| KAA0455 KNG Carrying Case Nylon Color: Camouflage |
| LAA0413 Leather Shoulder Strap |
| RDRCC 12 Cavity Carrying Case Color: Black |
| KAA0044 Kit, Side Port Cover and Screw, KNG-P/KNG2 |
| KAA0203EA Speaker/ Mic/ w/Emergency Button/ Ant port |
| KAA0203EA-KIT Speaker Kit Includes KAA0203EA, KAA0811C, KAA0221-203 |
| KAA0204-35 Heavy Duty, IP68 Submersible KNG-P/KNG2 Speaker Microphone w/Standard 3.5mm audio jack. |
| KAA0204-CLIP Assembly, Lapel Clip, KAA0204 Series |
| KAA0204-E-CBL Cable, Replacement, KAA0204-E, |
| KAA0204-E35 Heavy Duty, IP68 Submersible KNG-P/KNG2 Speaker Microphone w/Standard 3.5mm audio jack. |
| KAA0204-VCE35 Heavy Duty, IP68 Submersible KNG-P/KNG2 Speaker Microphone w/Standard 3.5mm audio jack. |
| KAA0206 IP68 Submersible Speaker Microphone (IP68: immersion rated to one meter of water for 31 minutes). |
| KAA0210EH Ear Hugger, comes with a 3.5mm audio plug, flexible acoustic tubing and silicon mushroom bud, compatible with KAA0210NC |
| KAA0210NC Speaker Microphone, Noise Cancelling, IP67 Submersible w/standard 3.5mm audio jack, High/Low Audio switch, and Emergency Button. |
| KAA0214 Side Connector KNG to Hirose |
| KAA0220 Earphone Listen Only 2.5 mm Black Loop |
| KAA0220EH Earphone Listen Only 2.5 mm Black Loop (Ear Hugger Style) |
| KAA0221 Earphone Listen Only 3.5 mm Black Ear Loop |
| KAA0221-203 Listen Only Earphone w/Ear Hugger style earphone (3.5m threaded audio plug) |
| KAA0221EH Earphone Listen Only 3.5 mm Black Loop (Ear Hugger Style) |
| KAA0221OTE Listen Only Earphone w/black ear muff (w/3.5mm right angle plug) |
| KAA0222EH Listen Only Earphone w/Ear Hugger style earphone (w/3.5mm right angle plug) |
| KAA0222OE Earphone Kit, Over Ear, KNG-P teem , 0783B2 |
| KAA0223 Heavy Duty Noise Canceling Earphone with Boom Microphone (Over the Head) |
| KAA0225 Two Wire Surveillance Microphone The PPT button and mic are both part of a single unit (clip on lapel style) |
| KAA0226 Three Wire Surveillance Microphone (Includes KAA0226A and KAA0226M earphone). |
| KAA0226A Replacement Acoustic Tube With Clear Ear Tip for KAA0225 & KAA0226 |
| KAA0226AT-KIT Acoustic tube & quick disconnect Kit |
| KAA0226EB Ear Bud, Standard Kit, 07821B |
| KAA0226EL Replacement Large Flexible Ear Insert for KAA0225 & KAA0226 |
| KAA0226ES Replacement Small Flexible Ear Insert for KAA0225 & KAA0226 |
| KAA0226ET Replacement Standard Flexible Ear Insert for KAA0225 & KAA0226 |
| KAA0226F Flat PPT Button With 2.5mm plug |
| KAA0226OEI Acoustic Tube with Ear Insert |
| KAA0226R Ring PPT Button With 2.5mm plug |
| KAA0228 Heavy Duty Noise Canceling Earphone with Boom Microphone (Behind the Head) |
| KAA0228-HRC Headset Replacement Cable, KAA0228, KNG/2-P Series, Otto |
| KAA0235 Adaptor, 2.5 to 3.5mm audio jack |
- KNG-P150: 136-174 MHz, 5000 channels, 6 Watt, P25 Digital/Analog Portable
- KNG-P150CMD: 136-174 MHz, 5000 channels, 6 Watt, P25 Specialized Command Groups
- KNG-P150T2: 136-174 MHz, 5000 channels, 6 Watt P25 Digital/Analog Portable without Keypad
- KNG-P400: 380-470 MHz, 5000 channels, 5 Watt P25 Digital/Analog Portable
- KNG-P400T2: 380-470 MHz, 5000 channels, 5 Watt P25 Digital/Analog Portable without Keypad
- KNG-P500: 440-520 MHz, 5000 channels, 5 Watt P25 Digital/Analog Portable
- KNG-P500T2: 440-520 MHz, 5000 channels, 5 Watt P25 Digital/Analog Portable without Keypad
- KNG-P800: 763-870 MHz, 5000 channels, 3 Watt P25 Digital/Analog Portable
- KNG-P800T2: 763-870 MHz, 5000 channels, 3 Watt P25 Digital/Analog Portable without Keypad
