KNG Mobile
BK Technologies
KNG Mobile

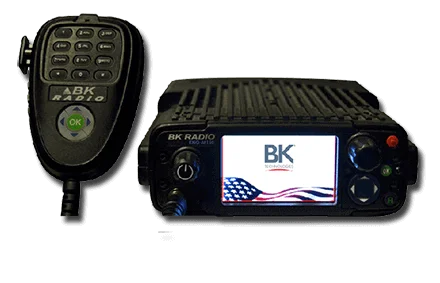

The KNG P25 mobile Radio offers exceptional performance in a VERSATILE form. BK Technologies is honored to serve our Everyday Heroes with a device that brings Dependability when every moment counts.
Performance
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174 MHz
UHF: 380-470, 440-520 MHz
700/800: 763-870 Mhz
Power Output:
VHF: 50 W
UHF: 50 W
700/800: 30/35 W
Number of Channels/Groups/Zones:
5000 Channels
- 5000 Channels, Dynamic Zoning
- USB or Mobile Programmability
- Mixed-Mode Operation
- Talk Around
- Channel/Priority/Group Scan
- Custom Menu System
- Mil-Std 810 C/D/E/F/G
- Text Messaging
- Alpha-Numeric Touch Screen Display
- DVSI AMBE+2 Version 1.60 Vocoder
- 256 Programmable Quick Call Id’s
- Emergency Signaling
Brochures
 | KAA0834 GPS Antenna (Magnetic Mount) w/17 ft. cable & MMXC Male Connector |
 | KAA0835 Fixed Vehicular Antenna mount |
 | MAGMT-NTYPE Magnetic Mount Base w/17 ft. Cable & Type-N male connector |
 | MAGMT-UHF Mount, Mag, UHFM, 17' Cable |
 | MWU4002S UHF Mobile Antenna, 380-470 MHz, for NMO mount |
 | MWV1360S VHF Mobile Antenna, 136-174 MHz, for NMO mount |
 | MWV800 Mobile Antenna, 763-870 MHZ |
 | MWV800NGP Antenna Mobile, 806-866MHz, MUF8003NGP (S) (No Ground Plane Required |
 | MWV800STB Antenna, OMNI, NMO, 698-960 MHz /1700-2700 MHz, Stubby 3.5 dbi, 100 W |
 | NMO-NTYPE NMO Antenna Vehicular Mount w/17 ft. cable & Type-N Male Connector |
 | NMO-NTYPE-L Mount, Antenna, Perm Hole, NMOKHFUD |
 | NS1535 Filter, Line, 15A, Chassis Mount |
 | KAA0158-V2 Power Supply, Desktop, 12Vdc, 30A-dc, 110-AC, ICT12-30 |
 | KAA0601P Mounting Bracket, Vehicular, for KAA0301P |
| KAA0617-V2 Hood w/Power Supply |
| KAA0622 Cable Assembly, Interface, Motorcycle, for Setcom motorcycle product, KNG-M Mobiles |
| KAA0623 Radio Interface Cable for connecting a KNG-Mxxx to the David Clark U3800 headset system. |
| KAA0625 Cable, Interface, Mobile to DC Headset |
| KAA0628 Cradle, Desktop, HCH/RCH Interface, KNG-GM/B |
| KAA0629 Kit, RCH Expansion Splitter Box |
 | KAA0630 KNG-M Dash Mount Install Kit, Bracket, Hardware & Power Cord |
 | KAA0631 Kit, Mobile, Mounting Adaptor, KNG-M to Kenwood |
 | KAA0633 Kit, Install, KNG-M Series, Mobile, 12 AWG, Dash Mount |
 | KAA0634 30” KNG-M Mobile Remote Mount Interface Cable Assembly (suggested for use as a KNG-M Test Bench cable assembly) |
 | KAA0635 8 ft. KNG-M Mobile Remote Mount interface Cable Assembly |
 | KAA0636 17 ft. KNG-M Mobile Remote Mount Interface Cable Assembly |
 | KAA0637 25 ft. KNG-M Mobile Remote Mount Interface Cable Assembly |
 | KAA0638 KNG-M Remote Mount Install Kit, Bracket, Hardware & Power Cord (The KAA0638 install kit is included with each KAA0660) |
 | KAA0639 KNG-MxxxR Trunk Mount Installation Kit |
 | KAA0639C KNG-MxxxR In-Cab Mount Installation Kit |
| KAA0640A Cable Kit, KNG-M to MSAT, Noise Inhibit |
 | KAA0647A 25 pin cable assembly with audio jack for KNG-M |
 | KAA0656 Cable, RCH Extension, 300ft, |
 | KAA0656-100 Cable, RCH Extension, 100ft., |
| KAA0656-500 Cable, RCH Extension, 500Ft |
 | KAA0661 Remote Control Head, Cover, KNG-M |
| KAA0687 Kit, Strain Relief, KAA0290/0276 Microphone Cord |
| KAAMSAT MSAT to KNG-M Interface Cable |
 | BKR0261 Speaker, External, 20W, 4 Ohm, with mount bracket |
 | KAA0045 Microphone dust cover for the KNG-M |
 | KAA0258 Microphone, Desktop |
 | KAA0276S Standard Handheld Microphone KNG-M with Straight connector |
 | KAA0290S Handheld Programming Microphone with straight connector |
 | KAA0613 Cable Assy, KAA0276 Extension, 15F, KNG-M. This is the KAA0276 mic extension cable |
| KAA0614 Kit, Nameplate KNG-M |
 | KAA0616 Cable, Interface, FireCom KNG-M |
 | KAA0647 Aux / Speaker Cable Assembly (included with each KNG-M) |
 | KAA07110 KNG-M Series Telephone Handset |
 | KAA07110-CH Cradle housing, replacement |
 | KAA0587A Key Loader interface cable assembly for the KNG-P, KNG2, KNG-M, KNG-TMR, & KNG-B for Motorola KVL3000/3000+/4000 Keyloaders |
 | KAA0701 Legacy-KNG & KNG-KNG Cloning Cable - Portable and Mobile |
 | KAA0705 Authentication key loader cable for KNG2-P and KNG-M |
 | KAA0710 KNG-P/KNG2/KNG-M/KNG-B/KNG-TMR Programming Cable |
 | KAA0720 Programming extension cable kit for use with KNG-M |
 | KAA0609 Interface Test/Service Adapter for use with IFR/Other Radio Test sets for KNG-M Mobiles |
 | KAA0609A Interface Test/Service Adapter for use with the Aeroflex (Cobham) 3920 Digital Radio Test Set for KNG-M Mobiles |
- KNG-M150: 136-174 MHz, Digital/Analog, P25, 5000 channels, 50 Watts Dash Mount
- KNG-M150LP: 136-174 MHz, Digital/Analog, P25, 5000 channels, 50/1 Watts Dash Mount (No 100Watt Option)
- KNG-M400: 380-470 MHz, Digital/Analog, P25, 5000 channels, 50 Watts Dash Mount
- KNG-M500: 440-520 MHz, Digital/Analog, P25, 5000 channels, 50 Watts Dash Mount
- KNG-M800: 763-870 MHz, Digital/Analog, P25, 5000 channels, 30/35 Watts Dash Mount
Units come with Installation Kit (KAA0630) & External Speaker (KAA0261)
Microphones sold separately.
- KNG-M150R: 136-174 MHz, Digital/Analog, P25, 5000 channels, 50 Watts Remote Mount
- KNG-M150LPR: 136-174 MHz, Digital/Analog, P25, 5000 channels, 50/1 Watts Remote Mount (No 100Watt Op)
- KNG-M400R: 380-470 MHz, Digital/Analog, P25, 5000 channels, 50 Watts Remote Mount
- KNG-M500R: 440-520 MHz, Digital/Analog, P25, 5000 channels, 50 Watts Remote Mount
- KNG-M800R: 763-870 MHz, Digital/Analog, P25, 5000 channels, 30/35 Watts Remote Mount
Units come with Installation Kit (KAA0630) & External Speaker (KAA0261)
Requires Remote Controller KAA0660 or KAA0670 and Remote Mount Cable
Microphones sold separately.
