KNG Base Station Remote Head

    BK Technologies KNG Base Station - Remote Head
BK Technologies

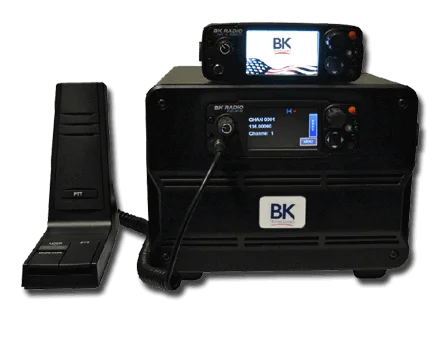

KNG Base Station Remote Head

The KNG Series Base Station offers exceptional features in a standard size package for both mid and high power applications. Offered in four frequency bands and two power options, 50 or 100 watt, the KNG Series Base Station is smart and easy to customize to fit your everyday needs. The KNG Base Station is also available with the option to connect two remote head units.


Request a Quote

Performance

Frequency band:
VHF, UHF, 700/800 MHz

Frequency range:
VHF: 136-174 MHz
UHF: 380-470, 440-520 MHz
700/800: 763-870 MHz

Power Output:
VHF: 50 W
UHF: 50 W
700/800: 30/35 W

Number of Channels/Groups/Zones:
5000 Channels

Additional Information Here

Brochures

Installation & Mounting

No Image Available

KAA0612

To mount a KNG-B on a 19 in. rack
No Image Available

KAA0617-V2

Hood w/Power Supply
No Image Available

KAA0621

Interface Cable Assembly, IP-224 to KNG-B/M
No Image Available

KAA0628

Cradle, Desktop, HCH/RCH Interface, KNG-GM/B
Desk top docking station for a KAA0670 HCH for remote interfacing to a KNG-M/B. Use with the KAA0659.
No Image Available

KAA0629

Kit, RCH Expansion Splitter Box,
No Image Available

KAA0659

Splitter, Interface, HCH/RCH, KNG-M/B
Interface up to 4 remote HCH/RCH remote control head connections to a KNG-M/B.
Use with the KAA0628. Up to 4 cradle interfaces can be made to one KNG-M/B thru a non- Ethernet/TCP CAT5 cable network.

Mobile Antennas and Mounts [+]

No Image Available

MAGMT-NTYPE

Magnetic Mount Base w/17 ft. Cable & Type-N male connector
No Image Available

MAGMT-UHF

Mount, Mag, UHFM, 17' Cable
No Image Available

MWU4002S

UHF Mobile Antenna, 380-470 MHz, for NMO mount
No Image Available

MWV1360S

VHF Mobile Antenna, 136-174 MHz, for NMO mount
No Image Available

MWV800

Mobile Antenna, 763-870 MHZ
No Image Available

NMO-NTYPE

NMO Antenna Vehicular Mount w/17 ft. cable & Type-N Male Connector

Mobile Speakers and Microphones [+]

No Image Available

BKR0261

Speaker, External, 20W, 4 Ohm, with mount bracket
No Image Available

KAA0258

Microphone, Desktop
No Image Available

KAA0276S

Standard Handheld Microphone KNG-M with Straight connector
No Image Available

KAA0290

Heavy Duty Handheld Programming Microphone (Smart Mic), KNG-M/B
No Image Available

KAA0290S

Handheld Programming Microphone with straight connector
No Image Available

KAA0615

Kit, Audio Interface box for Headset and Foot PTT, does not include headset
No Image Available

KAA0647

Aux / Speaker Cable Assembly (included with each KNG-M)
No Image Available

PREMDESKMIC

Microphone, Desktop, NEXUS, Bosch

Programming Equipment [+]

name

KAA0701

Legacy-KNG & KNG-KNG Cloning Cable - Portable and Mobile
name

KAA0705

Authentication key loader cable for KNG2-P and KNG-M
name

KAA0710

KNG-P/KNG2/KNG-M/KNG-B/KNG-TMR Programming Cable
